Disassembly and Reassembly

DISASSEMBLY




1. REMOVE AIR DUCT

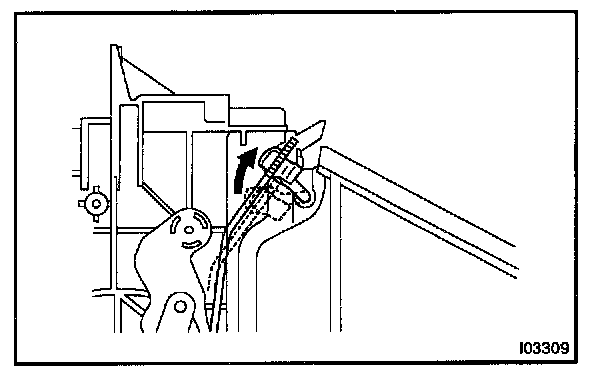

a. Disconnect the control link.

HINT: At the time of reassembly, please refer to the following item. Set the mode control lever and vent control door to "DEF" position, then connect the control link.

b. Remove the 2 screws.
c. Release the 2 claws and remove the duct.

2. REMOVE COVER
3. REMOVE HEATER RADIATOR
a. Remove the 2 screws and 2 clamps.
b. Pull out the heater radiator.
c. Remove the 2 screws, 2 clamps and 2 heater radiator pipes.

HINT: Do not reuse the 2 O-rings.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
