Front Blower Motor

REMOVAL
1. REMOVE LOWER N0.2 FINISH PANEL

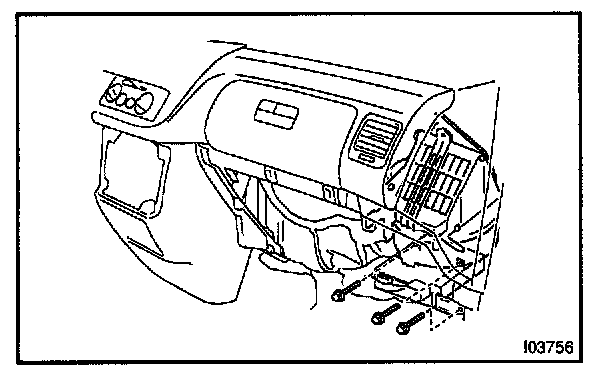

2. REMOVE ECM
a. Disconnect the connectors.
b. Remove the 3 bolts and ECM.

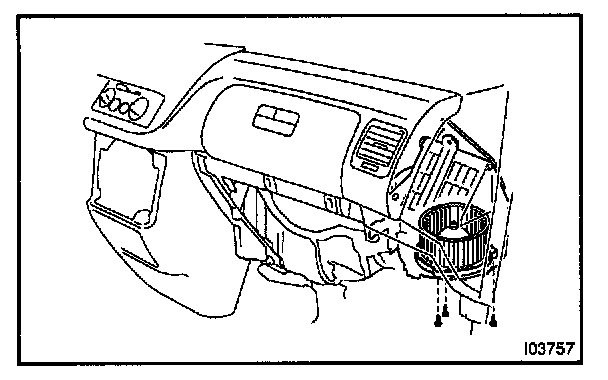

3. REMOVE BLOWER MOTOR
a. Disconnect the connector.
b. Remove the 3 screws and blower motor.

INSTALLATION
Installation is in the reverse order of removal.
