Blower Motor Switch: Testing and Inspection

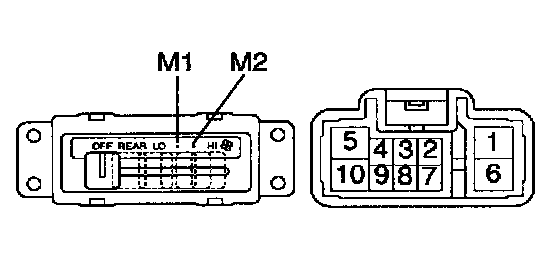

INSPECT REAR BLOWER SWITCH CONTINUITY
^

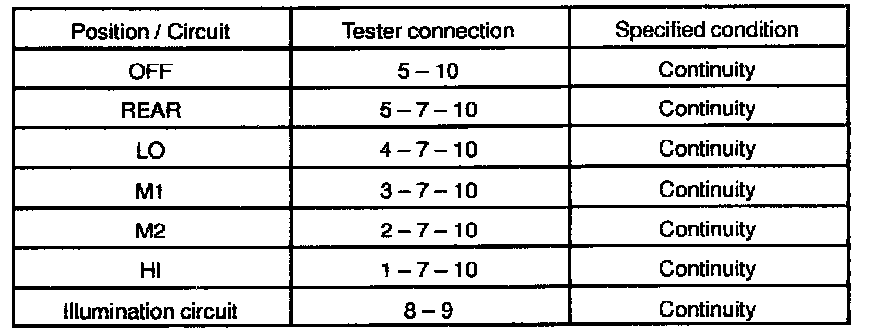

Switch continuity:
If continuity is not as specified, replace the switch.
^
Illumination circuit:
If continuity is not as specified, check the bulb.
