Front Blower Resistor

REMOVAL
1. REMOVE LOWER N0.2 FINISH PANEL

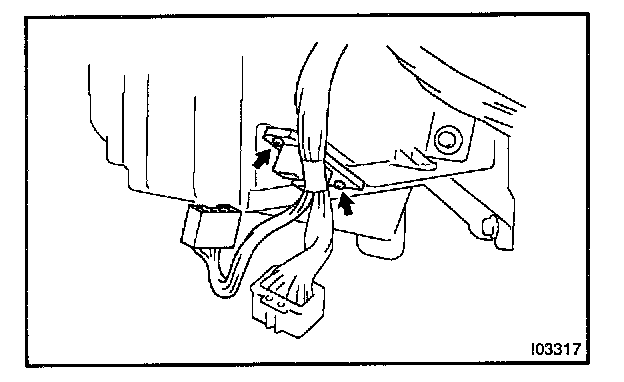

2. REMOVE BLOWER RESISTOR
a. Disconnect the connector.
b. Remove the 2 screws and blower resistor.

INSTALLATION
Installation is in the reverse order of removal.
