Blower Motor Relay: Testing and Inspection

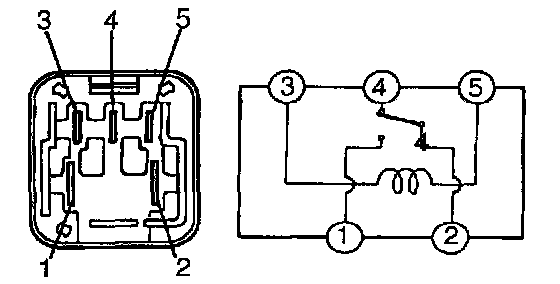

INSPECT FRONT HEATER RELAY CONTINUITY

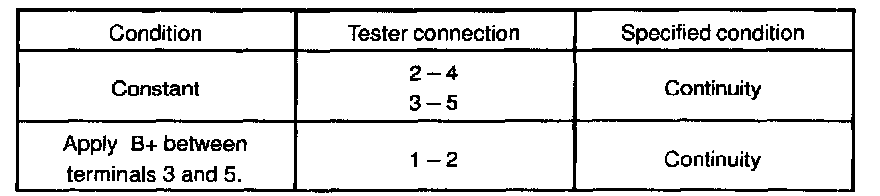

If continuity is not as specified, replace the relay.

INSPECT REAR HEATER RELAY CONTINUITY
Check the relay in the same way as for "FRONT HEATER RELAY".

5-Door Dual A/C Models:
INSPECT REAR RELAY CONTINUITY
Check the relay in the same way as for "FRONT HEATER RELAY".

5-Door Dual A/C Models:
INSPECT REAR HI RELAY CONTINUITY
Check the relay in the same way as for "FRONT HEATER RELAY".
