Toyota Truck
>>
1998
>>
Sienna LE V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Water Pump
Water Pump

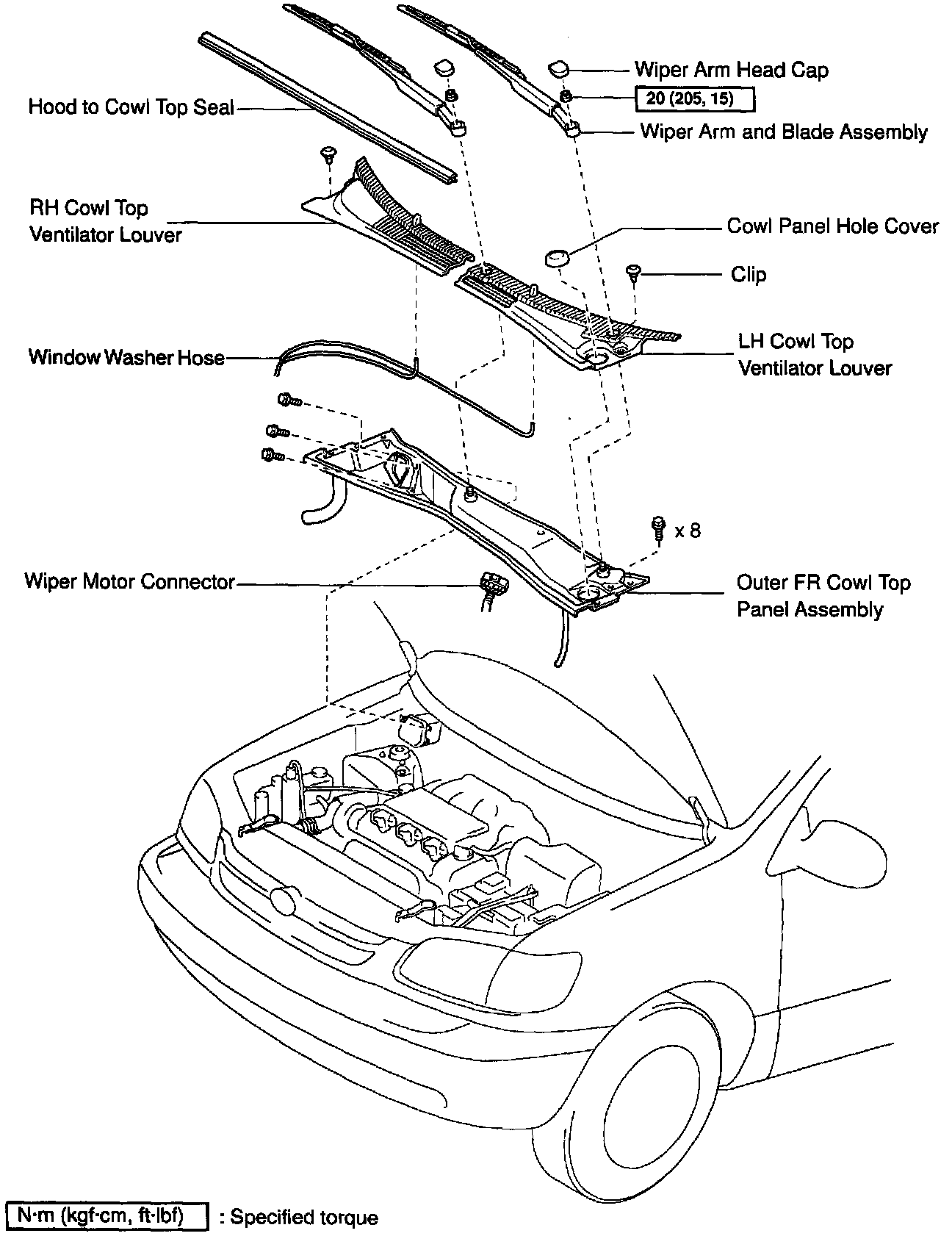

VENTILATOR LOUVER

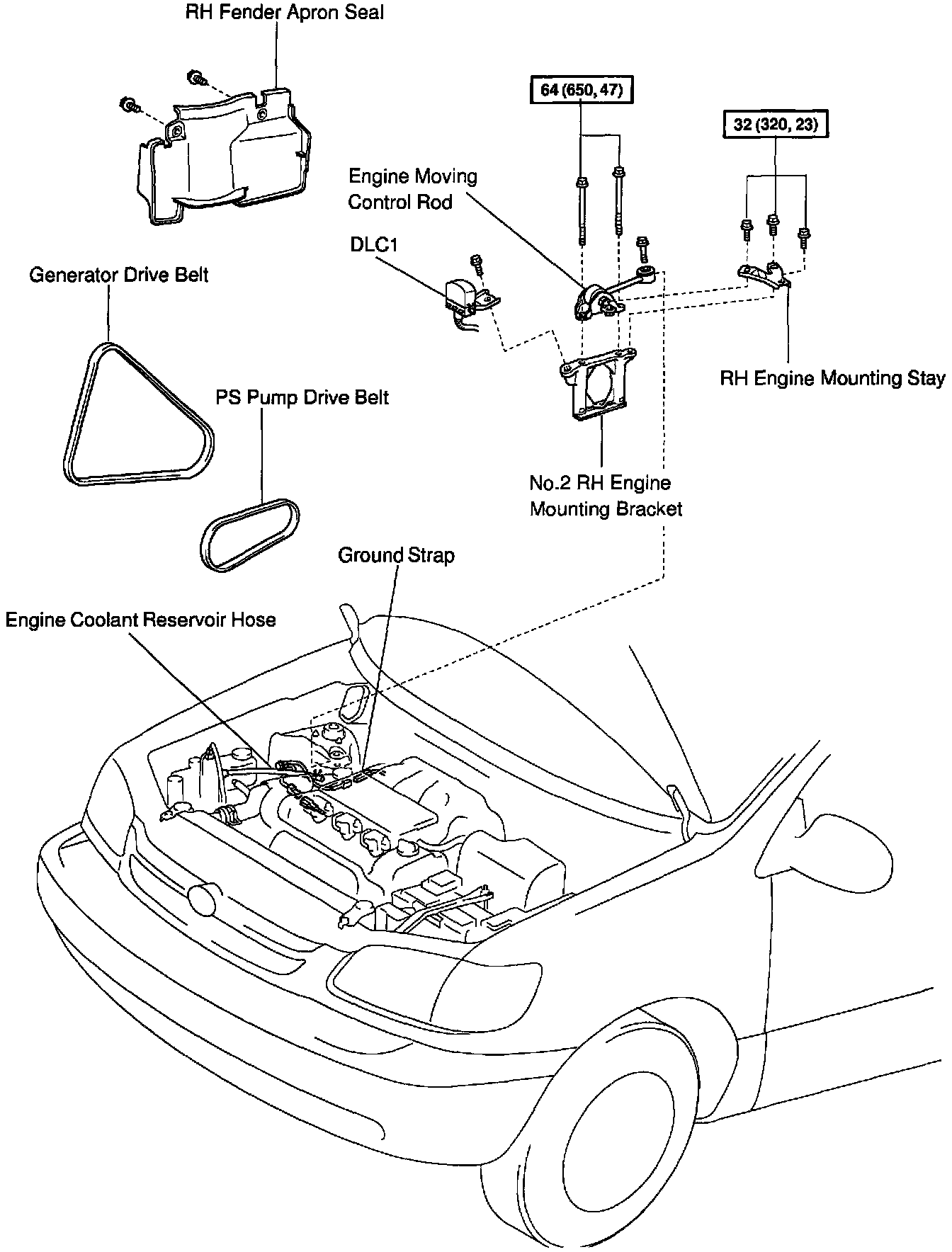

UNDERHOOD VIEW

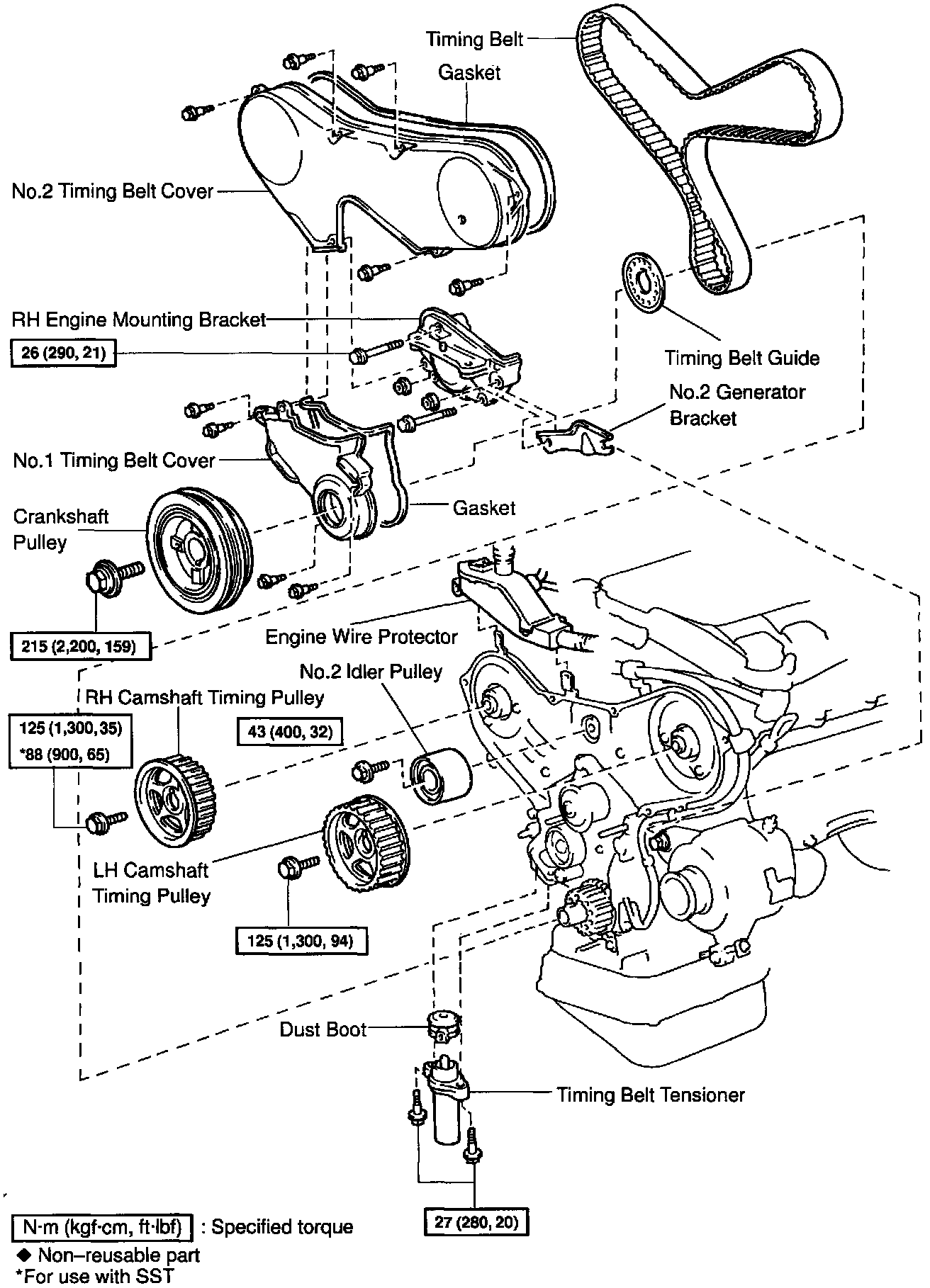

TIMING BELT
AND RELATED COMPONENTS

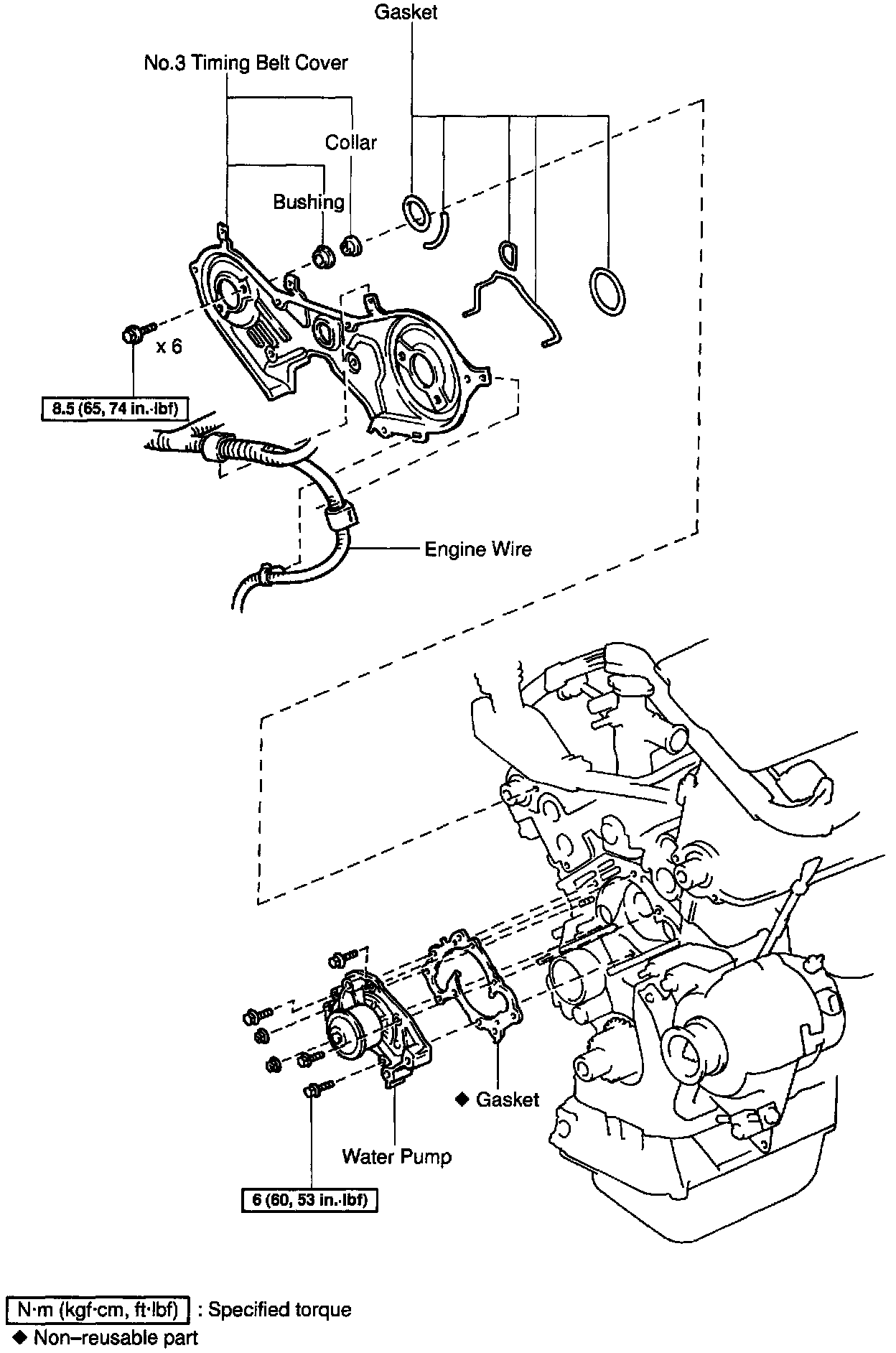

WATER PUMP ASSEMBLY AND RELATED COMPONENTS
