Toyota Truck
>>
1998
>>
Sienna LE V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Block Assembly

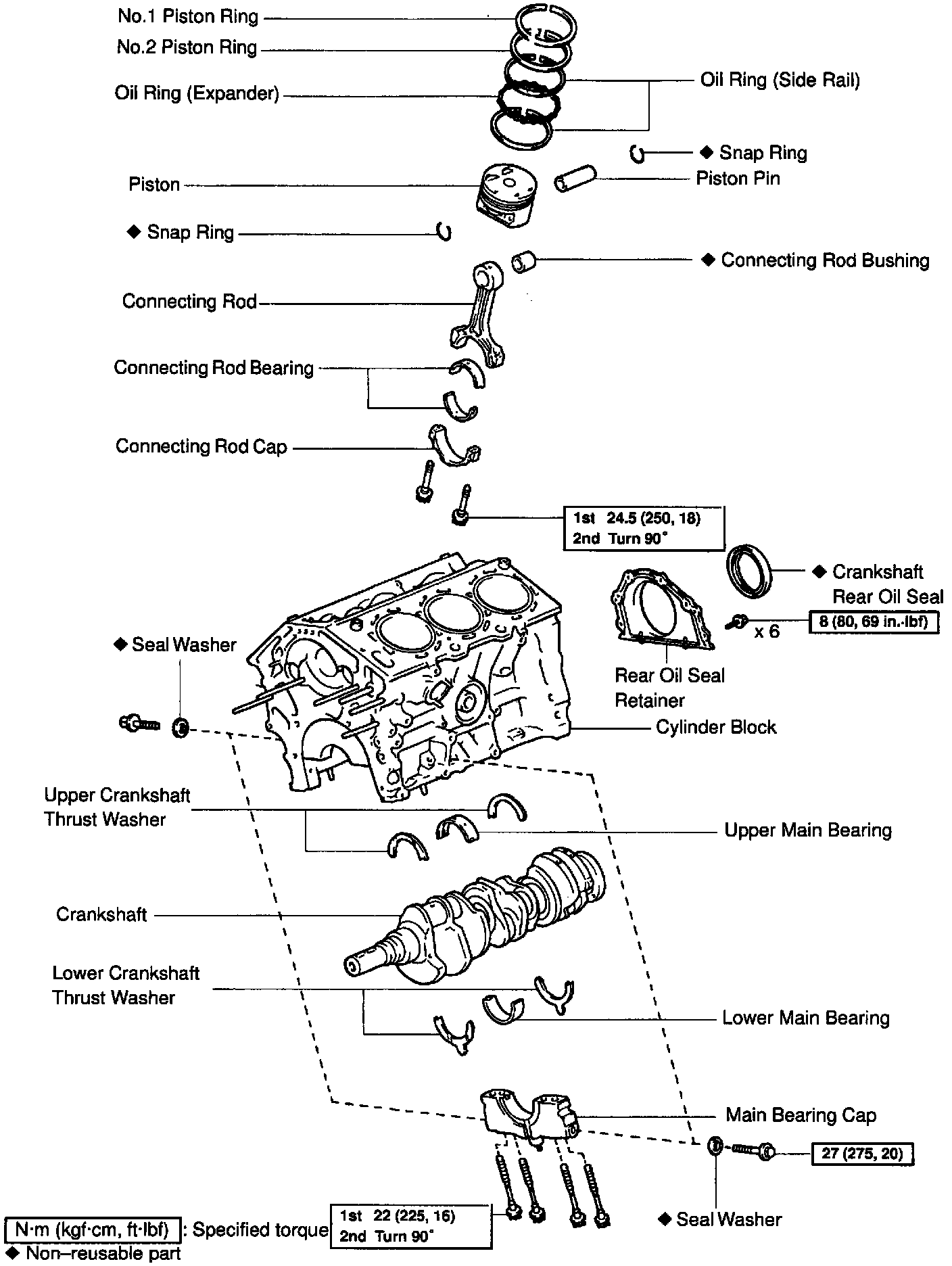

Cylinder Block Assembly

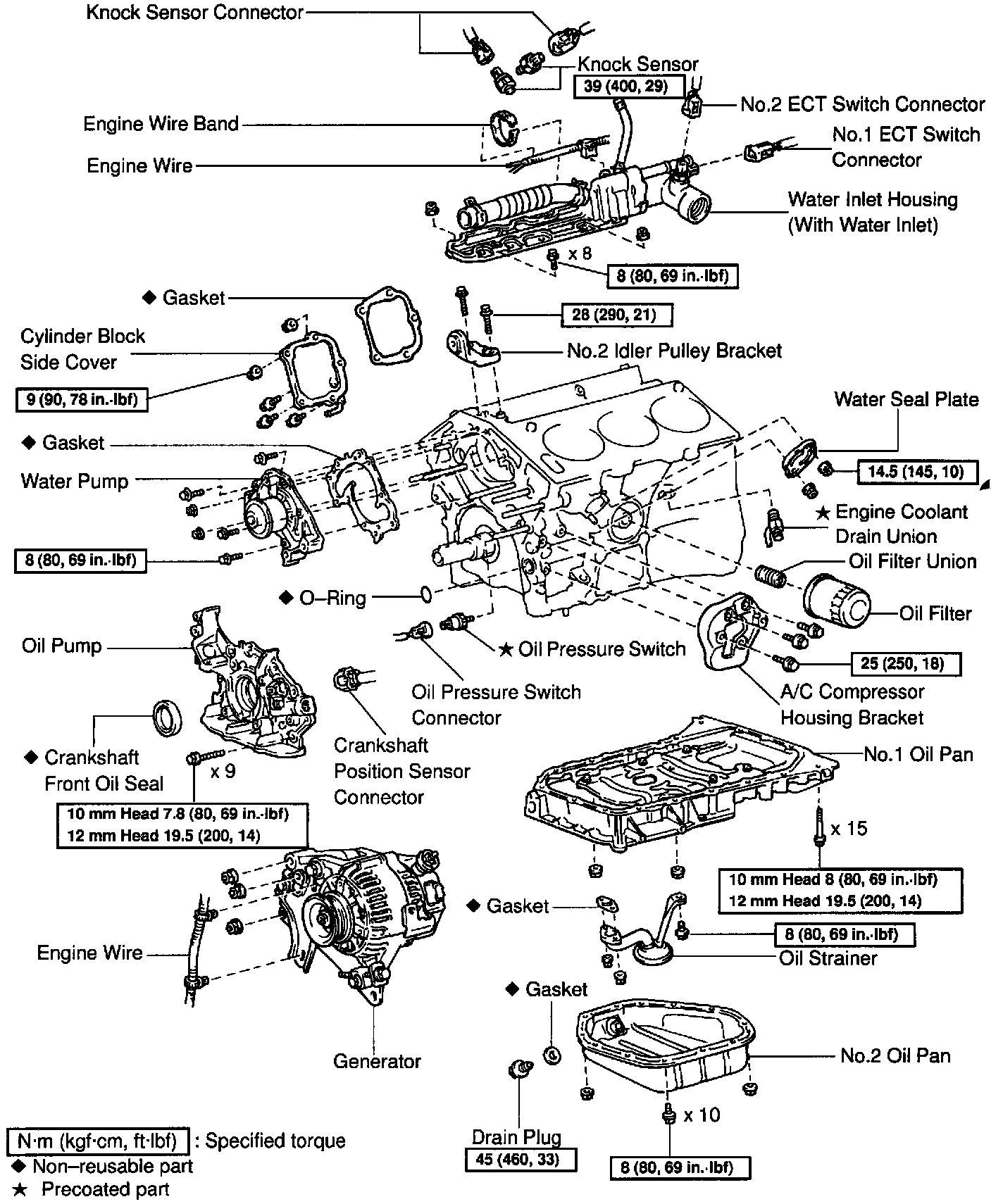

CYLINDER BLOCK EXTERIOR COMPONENTS
CYLINDER BLOCK EXTERNAL COMPONENTS
