Hydraulic Control Assembly - Antilock Brakes: Service and Repair

REMOVAL



1. Remove air cleaner assembly.




2. Disconnect brake lines.

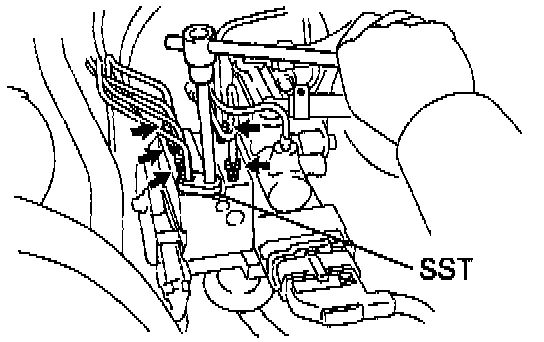

- Using Special Service Tool (SST) 09023-00100 or equivalent, disconnect the 6 brake lines from the ABS actuator.
Torque: 15 Nm (11 ft. lbs.)

3. Remove ABS actuator.
a. Disconnect the connector.
b. Remove the 3 nuts, and ABS actuator assembly from the bracket.
Torque: 14 Nm (10 ft. lbs.)

INSTALLATION
- Installation is in the reverse order of removal. After installation, fill brake reservoir with brake fluid, bleed brake system and check for leaks.
