Toyota Truck
>>
1998
>>
Sienna LE V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Keyless Entry
>>
Diagrams
>>
Connector Views
Connector Views

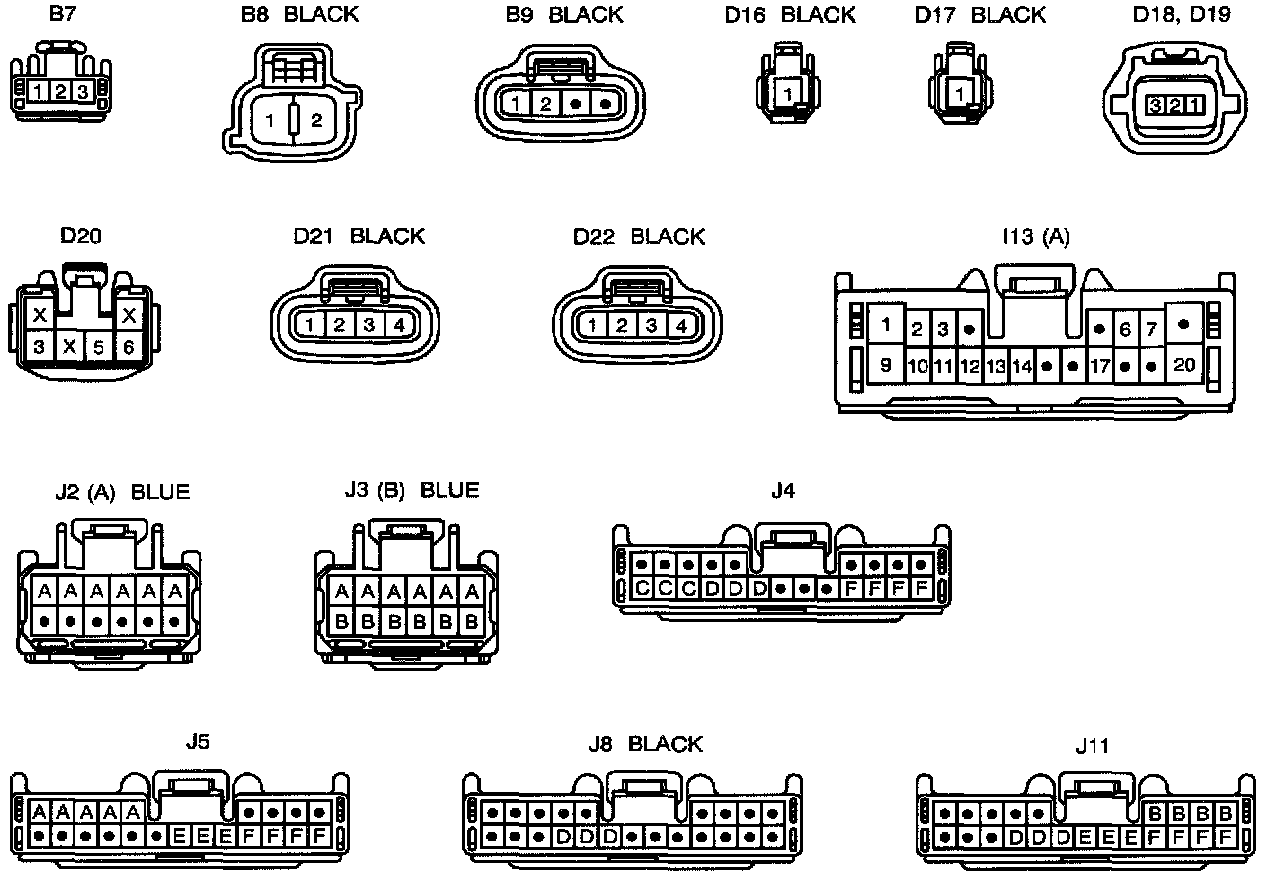

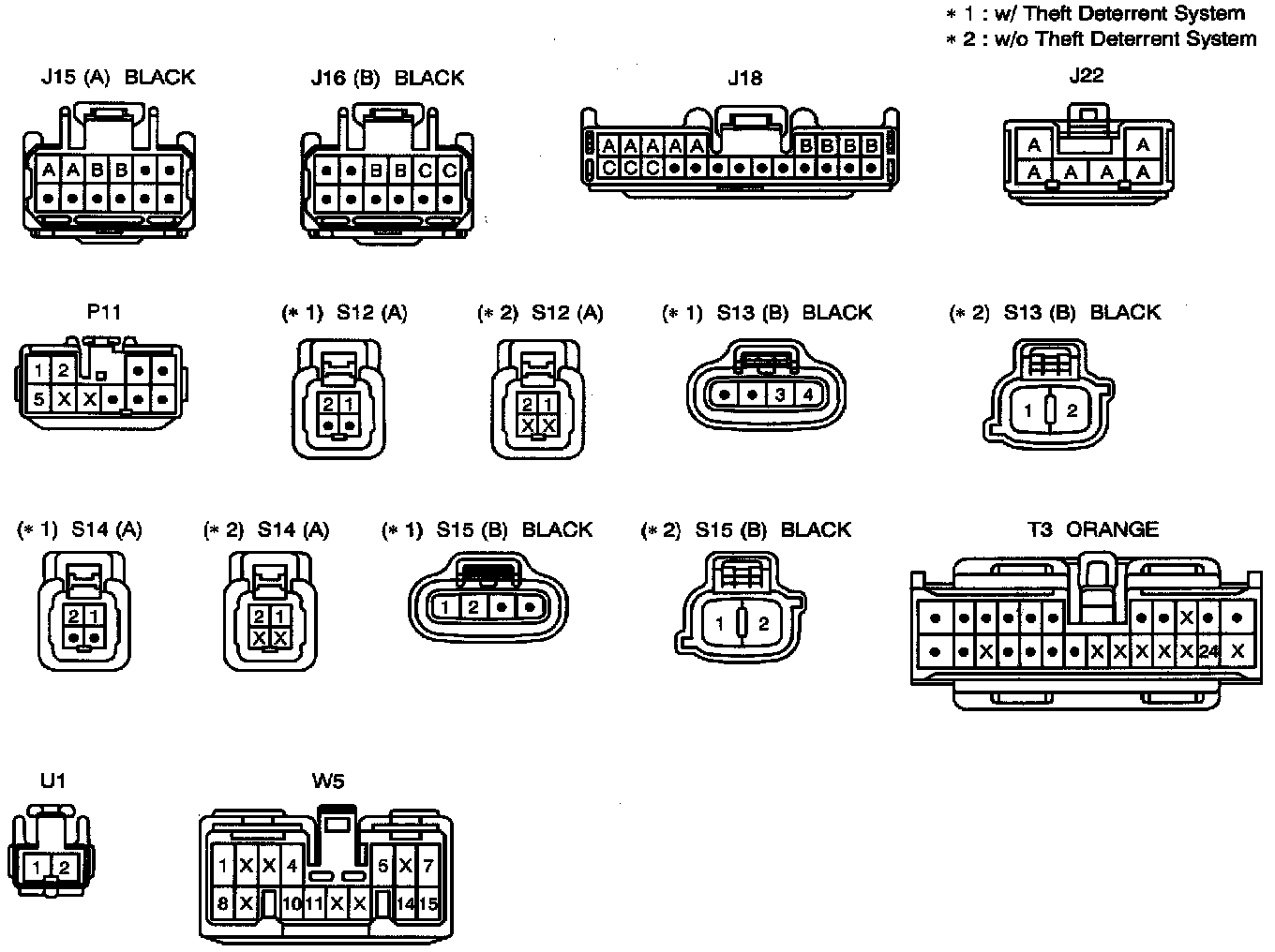

Wireless Door Lock Control-Connectors:
Wireless Door Lock Control-Connectors:
