Removal and Installation

REMOVAL





1. Disconnect speed sensor connector.

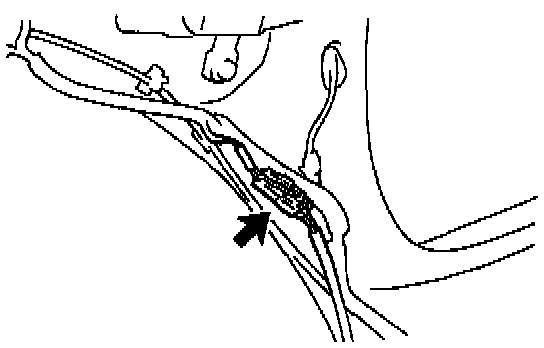

a. Remove the seat cushion and rear side trim.
b. Disconnect the speed sensor connector, and pull out the sensor wire harness with grommet.
c. Disconnect the parking brake cable from the suspension arm.
d. Remove the 3 clamp bolts holding the sensor wire harness to the body and suspension arm.
Torque:
To body: 5.0 Nm (49 inch lbs.)
To suspension arm: 13 Nm (9 ft. lbs.)
2. 2WD: Remove speed sensor with axle hub. (See "Steering and Suspension")

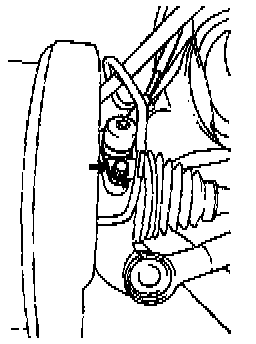

3. 4WD: Remove speed sensor.
Remove the speed sensor from the axle carrier.
Torque: 8.0 Nm (69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.
