Shift Interlock: Testing and Inspection

SHIFT LOCK SYSTEM

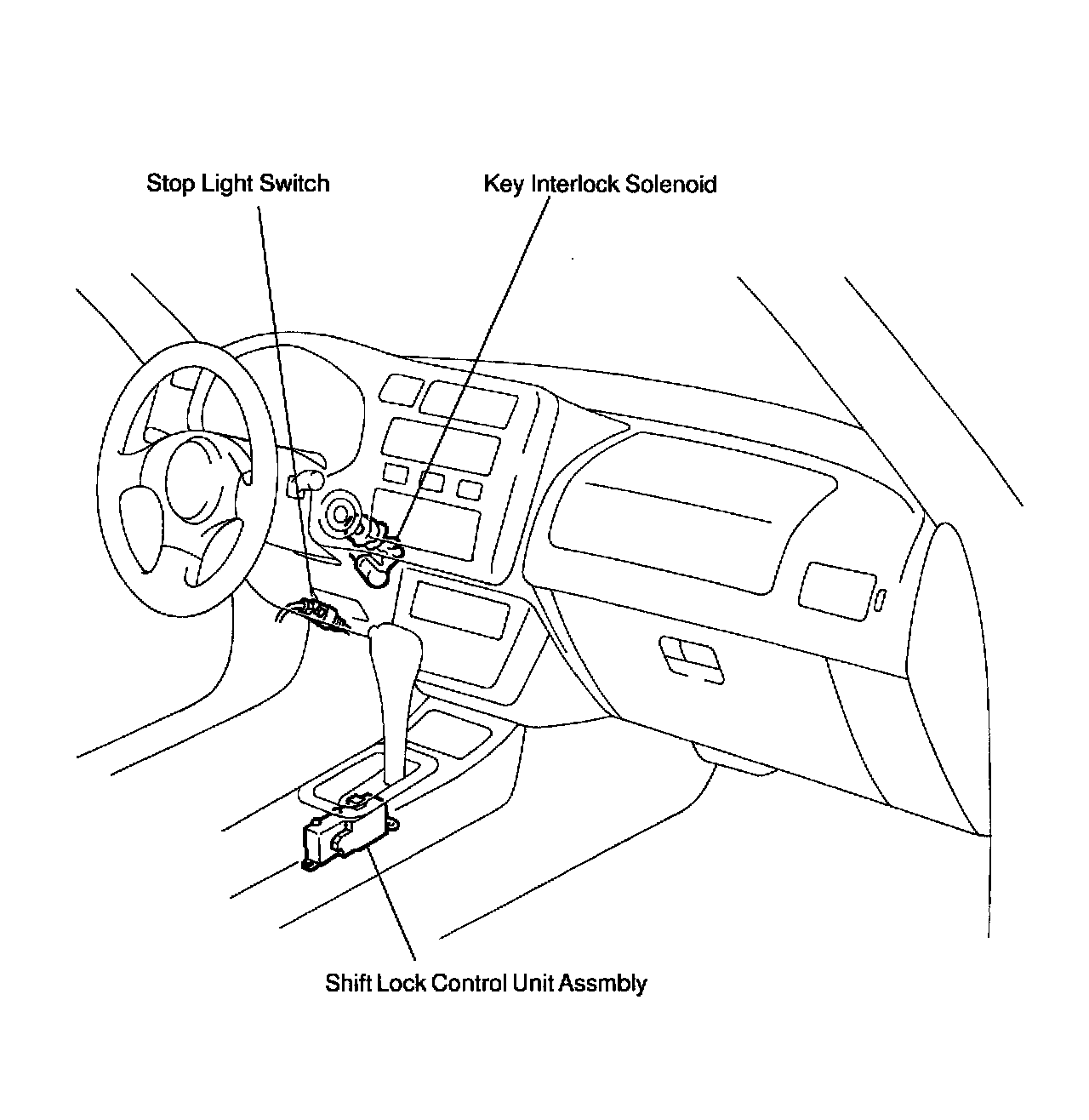

Location

Inspection








1. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY

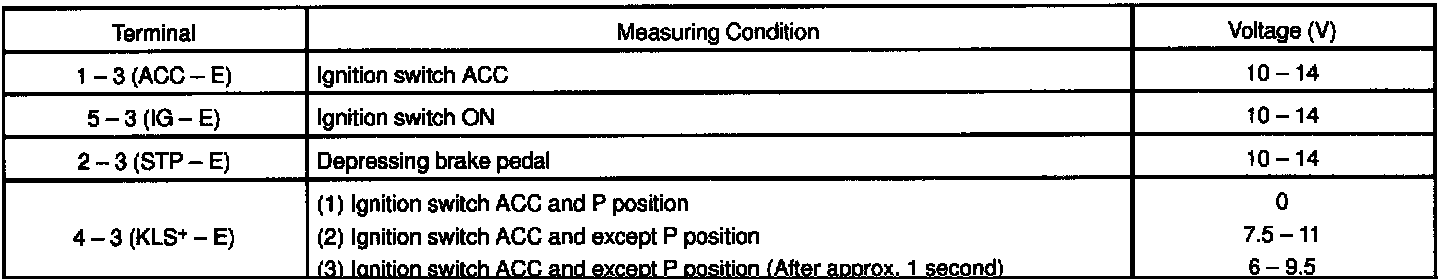

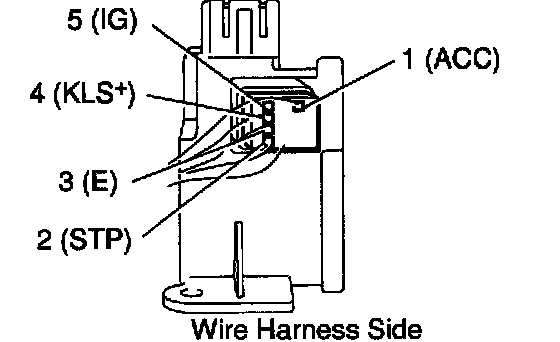

Using a voltmeter, measure the voltage at each terminal.

HINT: Do not disconnect the shift lock control unit assembly connector.

2. INSPECT KEY INTERLOCK SOLENOID
a. Disconnect the solenoid connector.

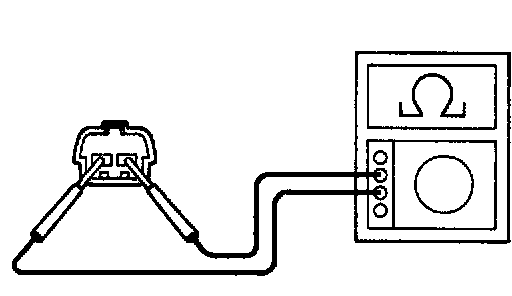

b. Using an ohmmeter, measure the resistance between the terminals.

Standard resistance: 12.5 - 16.5 Ohms

If the resistance value is not as specified, replace the solenoid.

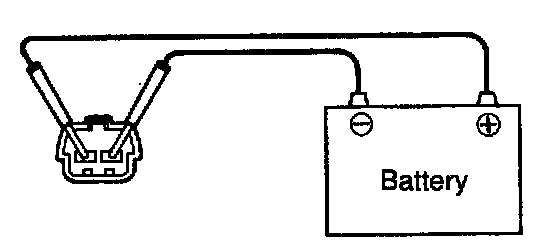

c. Provide the battery positive voltage between the terminals. Check that the solenoid can be heard to operate. If the operation is not as specified, replace the solenoid.
