Intermediate Shaft

INTERMEDIATE SHAFT

Components





Disassembly



1. REMOVE RING GEAR

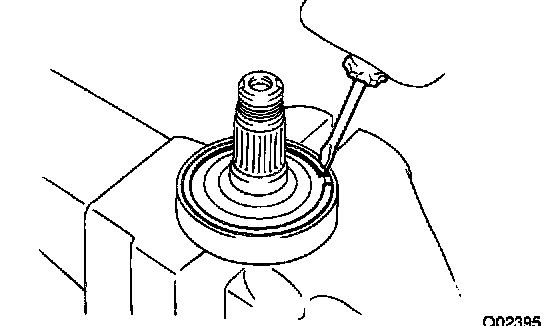

a. Using a screwdriver, remove the snap ring.





b. Remove the intermediate shaft from the ring gear.





2. IF NECESSARY, REMOVE OIL SEAL RING

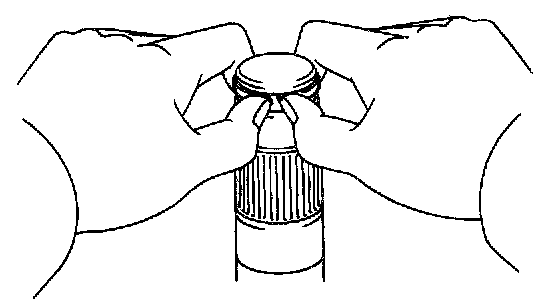

Remove the oil ring from the intermediate shaft.

Reassembly
INSTALL RING GEAR



a. Install the intermediate shaft to the ring gear.

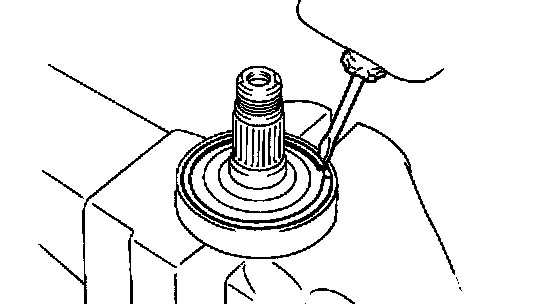

b. Using a screwdriver, install the snap ring.
