Counter Drive Gear

COUNTER DRIVE GEAR

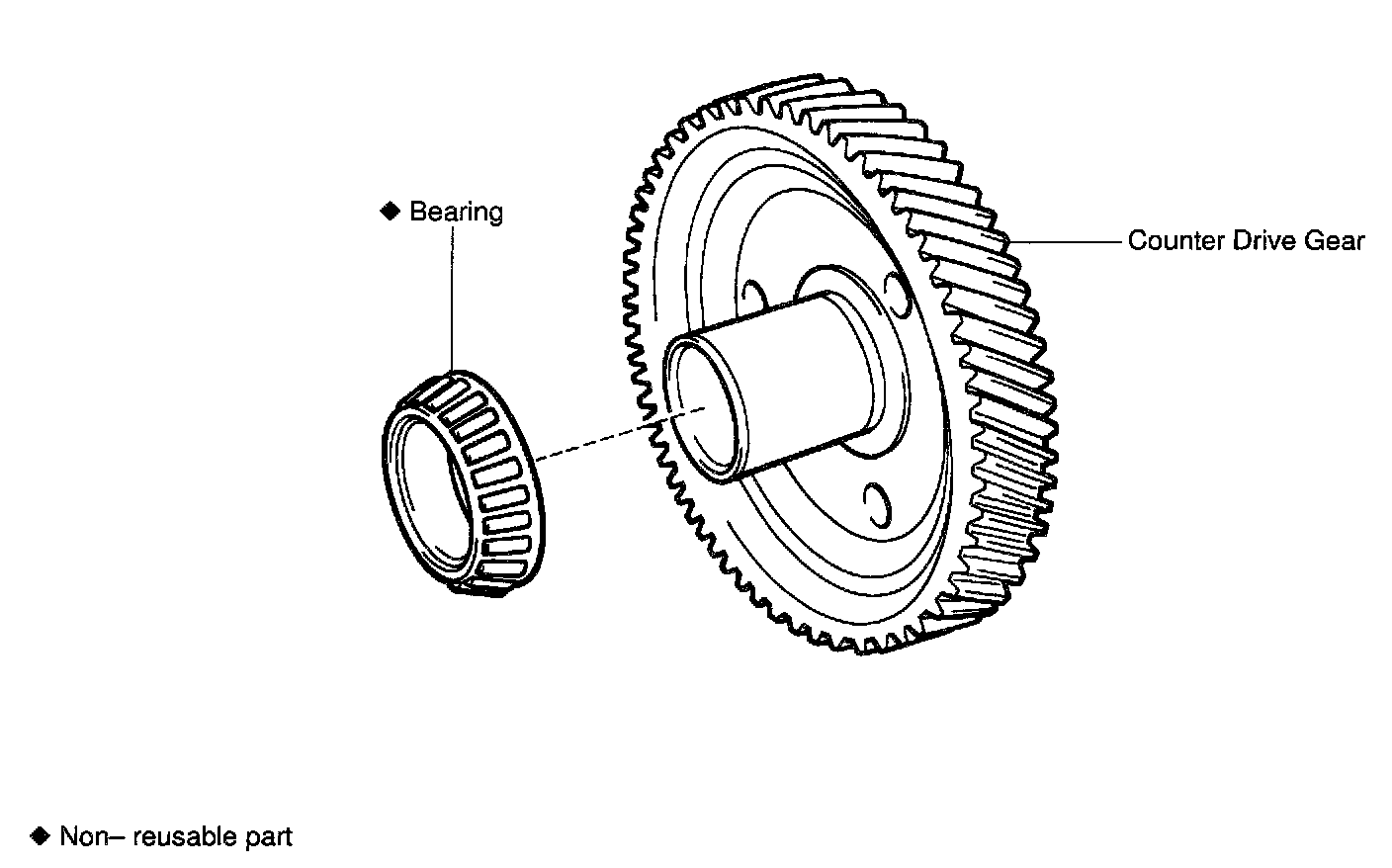

Components





Disassembly

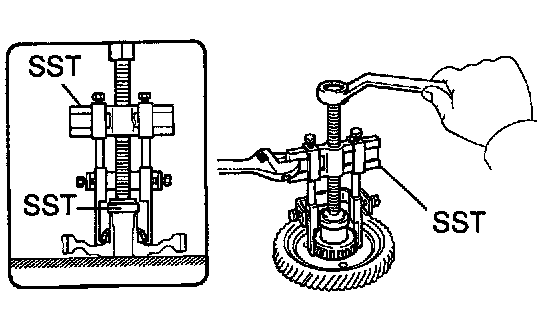

REMOVE COUNTER DRIVE GEAR BEARING



a. Using SST, pull up the bearing to about 20 mm (0.79 inch.)
SST 09631 - 20040, 09950 - 40011





b. Using SST, remove the bearing.
SST 09631 - 20040, 09950 - 40011


Reassembly

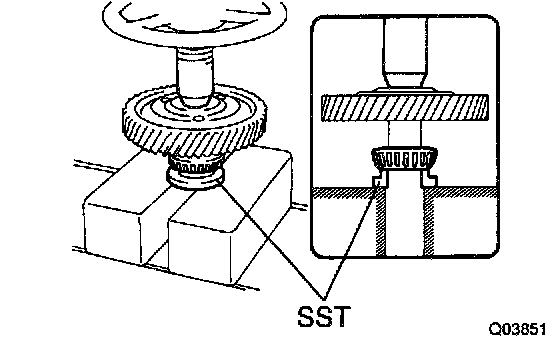

INSTALL COUNTER DRIVE GEAR BEARING



Using SST and a press, install a new bearing to the counter drive gear.
SST09350 - 32014 (09351 - 32120)
