Manual Shifting Test

MANUAL SHIFTING TEST

HINT: By this test, it can be determined whether the trouble is in the electrical circuit or is a mechanical problem in the transaxle.

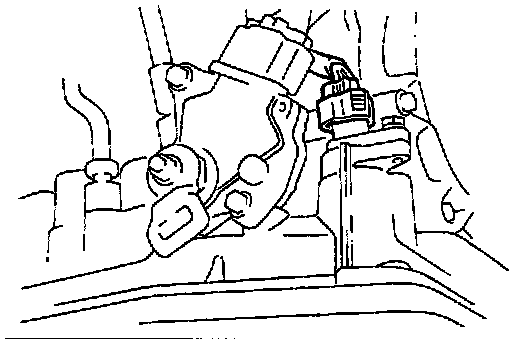

(a) Disconnect the solenoid wire.





(b) Inspect the manual driving operation.

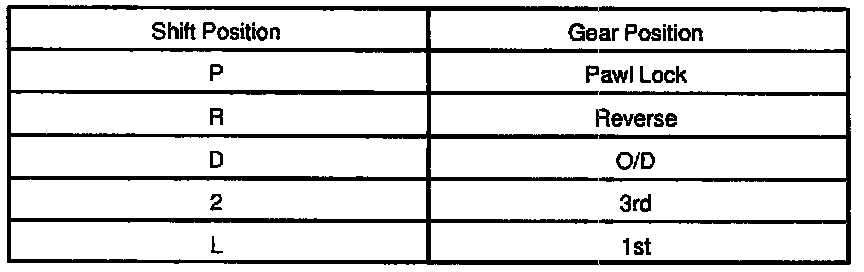

Check that the shift and gear positions correspond to the table above.

HINT:
- If the L, 2 and D position gear positions are difficult to distinguish, do the above road test.
- While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.

If any abnormality is found in the above test, the problem is in the transaxle itself.
(c) Connect solenoid wire.
(d) Clear the DTC.
