Ignition Coil: Service and Repair

REMOVAL

1. REMOVE THROTTLE BODY FROM INTAKE A MANIFOLD

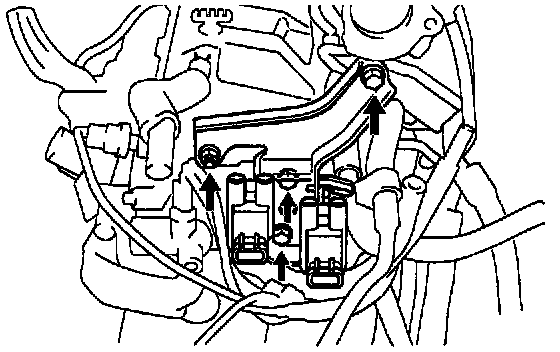

2. REMOVE IGNITION COILS AND NO.2 INTAKE MANIFOLD STAY ASSEMBLY
(a) Disconnect the 2 ignition coil connectors.
(b) Disconnect the wire clamp from the manifold stay.





(c) Remove the 2 nuts, 2 bolts, 2 ignition coils and manifold stay assembly.

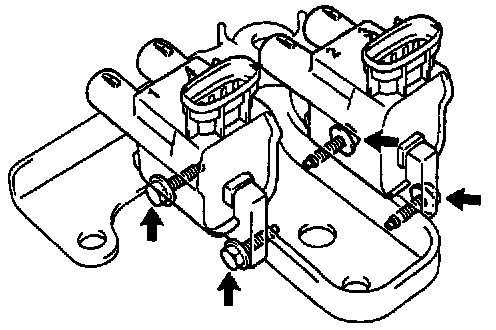

3. REMOVE IGNITION COILS FROM NO.2 INTAKE MANIFOLD STAY
Remove the 4 bolts and ignition coils.

INSTALLATION

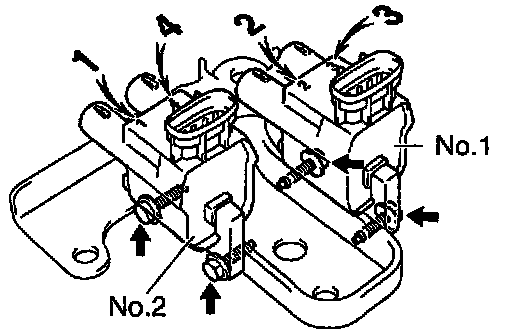

1. INSTALL IGNITION COILS TO NO.2 INTAKE MANIFOLD STAY
Install the 2 ignition coils with the 4 bolts.

Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

NOTICE: The installation positions of the ignition coils are different for No.1 and No.2.

2. INSTALL IGNITION COILS AND NO.2 INTAKE MANIFOLD STAY ASSEMBLY





(a) Install the 2 ignition coils and manifold stay assembly with the 2 nuts and 2 bolts.

Torque:
21 N.m (214 kgf.cm, 15 ft.lbf) for 12 mm head
42 N.m (428 kgf.cm, 31 ft.lbf) for 14 mm head

(b) Install the wire clamp to the manifold stay.
(c) Connect the 2 ignition coil connectors.
3. INSTALL THROTTLE BODY
