Exterior Lighting Module: Testing and Inspection

INSPECT INTEGRATION RELAY OPERATION
Light-on Warning System:

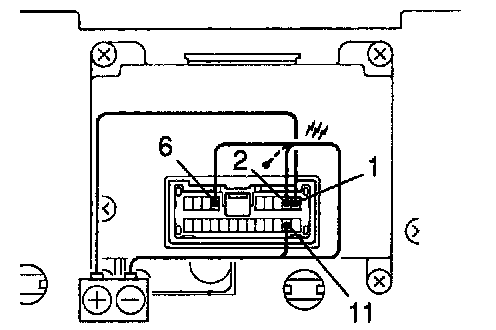

a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminals 2, 6 and 11.
b. Check that the buzzer sounds when the negative (-) lead from the battery is connected to terminal 2.
If operation is not as specified, replace the relay.
