Instrument Panel and Center Console

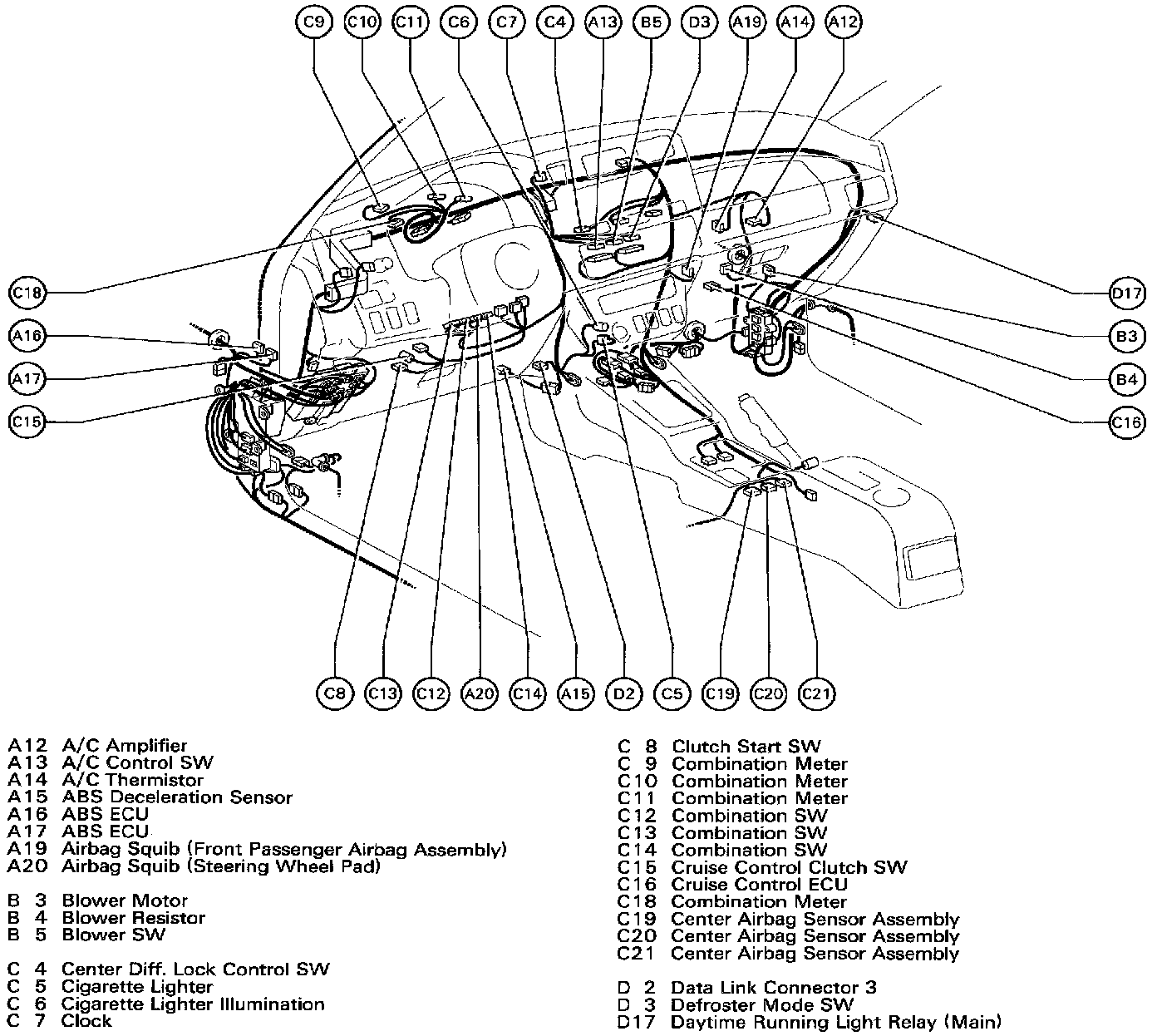

Position Of Parts In Instrument Panel (Part 1 Of 2) (Fig 30):

Position Of Parts In Instrument Panel (Part 2 Of 2) (Fig 31):

A12 A/C Amplifier
A13 A/C Control SW
A14 A/C Thermistor
A15 ABS Deceleration Sensor
A16 ABS ECU
A17 ABS ECU
A19 Airbag Squib (Front Passenger Airbag Assembly)
A20 Airbag Squib (Steering Wheel Pad)

B 3 Blower Motor
B 4 Blower Resistor
B 5 Blower 5W

C 4 Center Diff. Lock Control SW
C 5 Cigarette Lighter
C 6 Cigarette Lighter Illumination
C 7 Clock
C 8 Clutch Start SW
C 9 Combination Meter
C10 Combination Meter
C11 Combination Meter
C12 Combination SW
C13 Combination SW
C14 Combination SW
C15 Cruise Control Clutch SW
C16 Cruise Control ECU
C28 Combination Meter
C19 Center Airbag Sensor Assembly
C20 Center Airbag Sensor Assembly
C21 Center Airbag Sensor Assembly

D 2 Data Ark Connector 3
D 3 Defroster Mode SW
D17 Daytime Running Light Relay (Main)

E 3 Electronically Controlled Transmission Pattern Select SW
E 4 Engine Control Module
E 5 Engine Control Module
E 6 Engine Control Module

H 4 Hazard SW
H10 Heated Oxygen Sensor (Bank 1 Sensor 2)

I10 Ignition SW
I14 Integration Relay

J 1 Junction Connector
J 2 Junction Connector
J 3 Junction Connector
J 4 Junction Connector
J 5 Junction Connector
J 6 Junction Connector
J 7 Junction Connector
J 8 Junction Connector
J 9 Junction Connector
J10 Junction Connector
J11 Junction Connector

K 2 Key Interlock Solenoid

O 4 O/D Main SW

P 2 Parking Brake SW

R 3 Radio and Player
R 4 Radio and Player
R 5 Rear Window Defogger SW
R 6 Remote Control Mirror SW
R 7 Rheostat

S 4 Shift Lock ECU
S 5 Stop Light SW

U 1 Unlock Warning 5W
