Front

REMOVAL

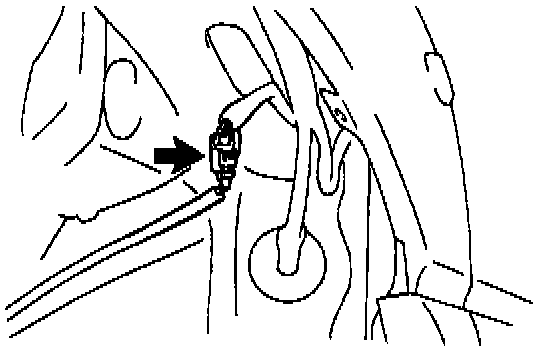

1. Disconnect speed sensor connector.
a. Remove the fender liner.
b. Disconnect the speed sensor connector.

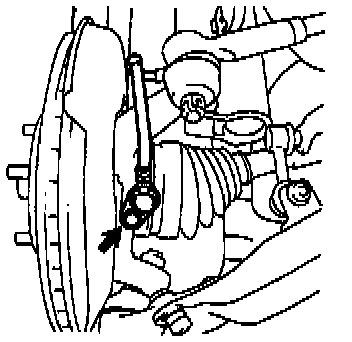

2. Remove speed sensor.
a. Remove the 4 clamp bolts holding the sensor harness to the body, shock absorber and steering knuckle.
Torque: 5.0 Nm (48 inch lbs.)
b. Remove the speed sensor from the steering knuckle.
Torque: 8.0 Nm (69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.
