Power Mirror Switch: Testing and Inspection

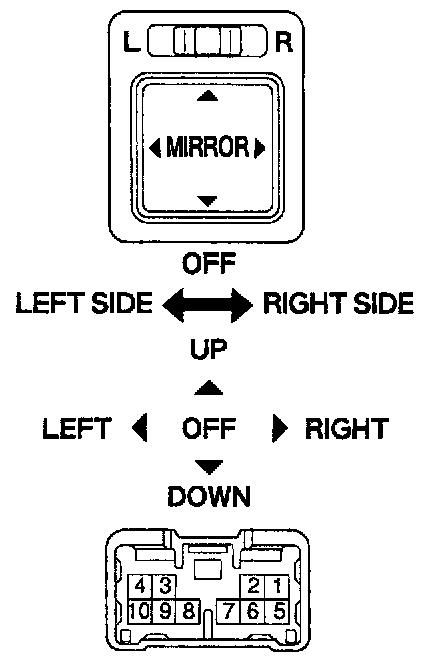

INSPECT MIRROR CONTROL SWITCH CONTINUITY

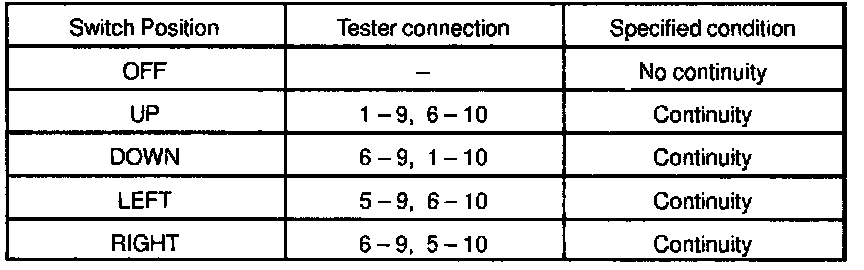

Left side

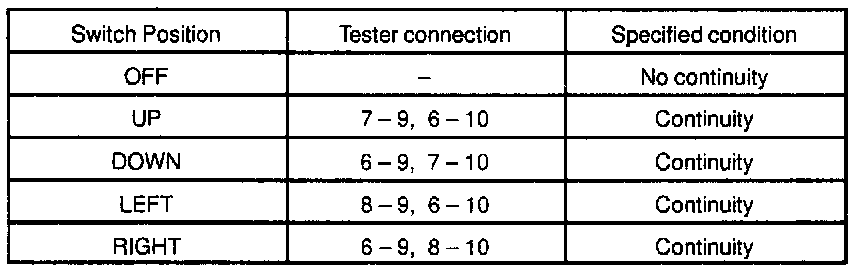

Right Side
If continuity is not as specified, replace the switch.
