Power Door Lock Switch: Testing and Inspection

INSPECT DRIVER'S DOOR LOCK MANUAL SWITCH CONTINUITY

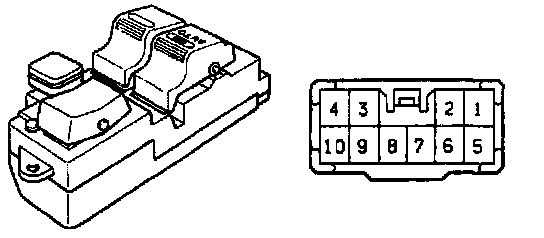

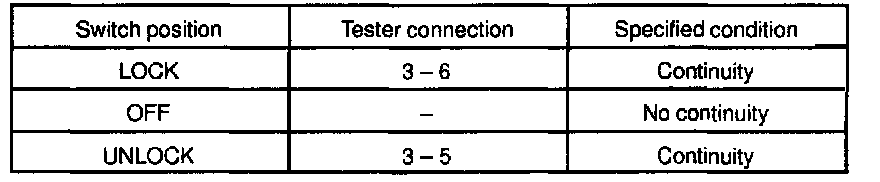

2 Door
If continuity is not as specified, replace the switch.

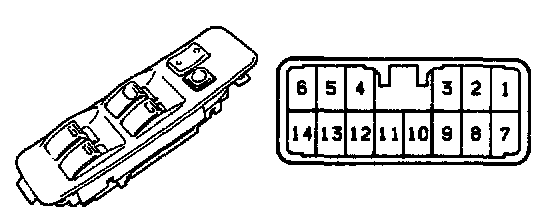

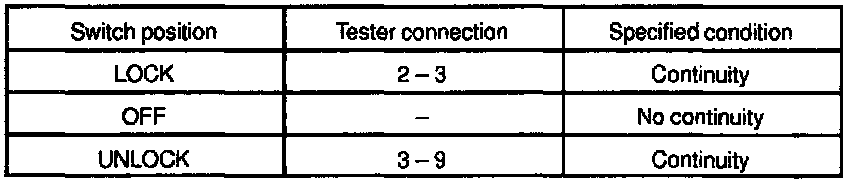

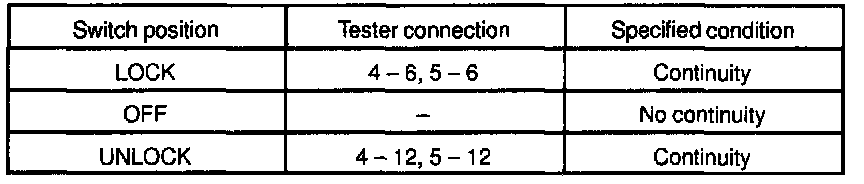

4 Door
If continuity is not as specified, replace the switch.

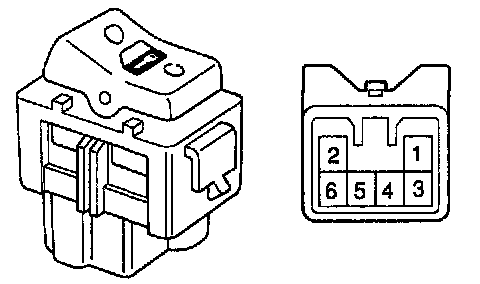

INSPECT PASSENGER'S DOOR LOCK MANUAL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

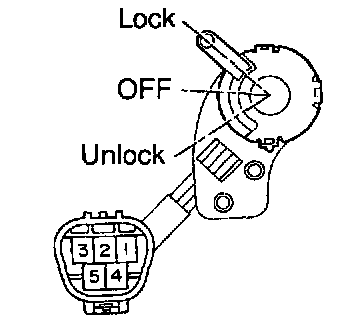

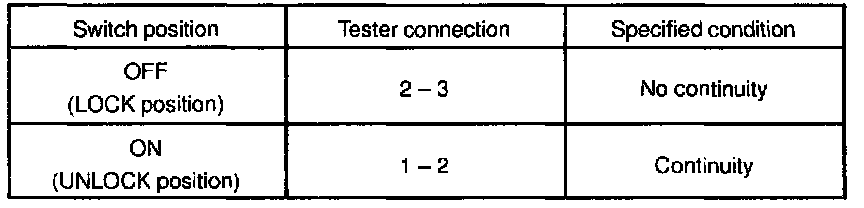

INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the door lock assembly.
