Fluid - M/T: Service and Repair

ON-VEHICLE REPAIR

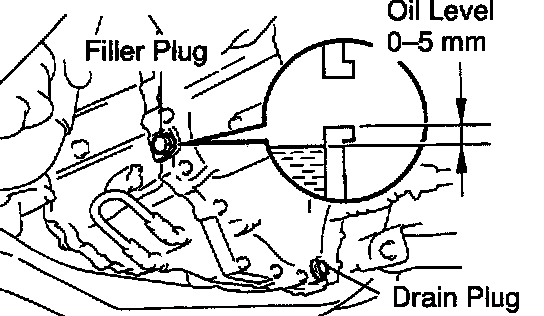

Replace transaxle oil (w/Differential and transfer oil)

Oil grade: API GL-5
Viscosity: SAE 75W-90
Capacity: 5.0 liters (5.3 US qts, 4.4 Imp. qts)
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
