Removal and Installation

REMOVAL
1. REMOVE CONDENSER
2. REMOVE ENGINE UNDER COVER
3. REMOVE CONDENSER




a. Disconnect the connector.

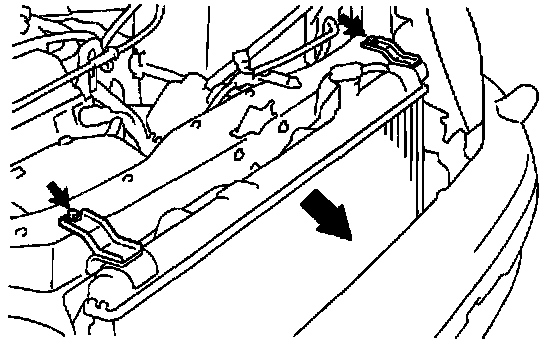

b. Remove the 2 bolts and 2 upper radiator supports.
c. Push the radiator toward front bumper.

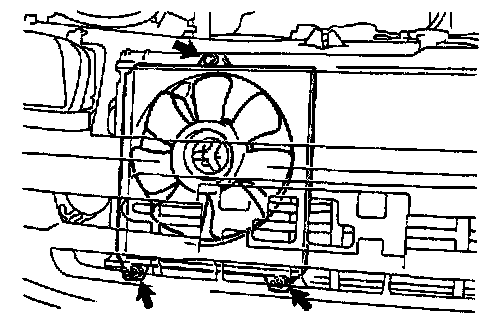

d. Remove the 3 bolts and pull out the fan upward.

INSTALLATION
Installation is in the reverse order of removal.
