Toyota Truck
>>
1998
>>
RAV4 2-Door 4WD L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Axle Shaft
>>
Rear
Rear

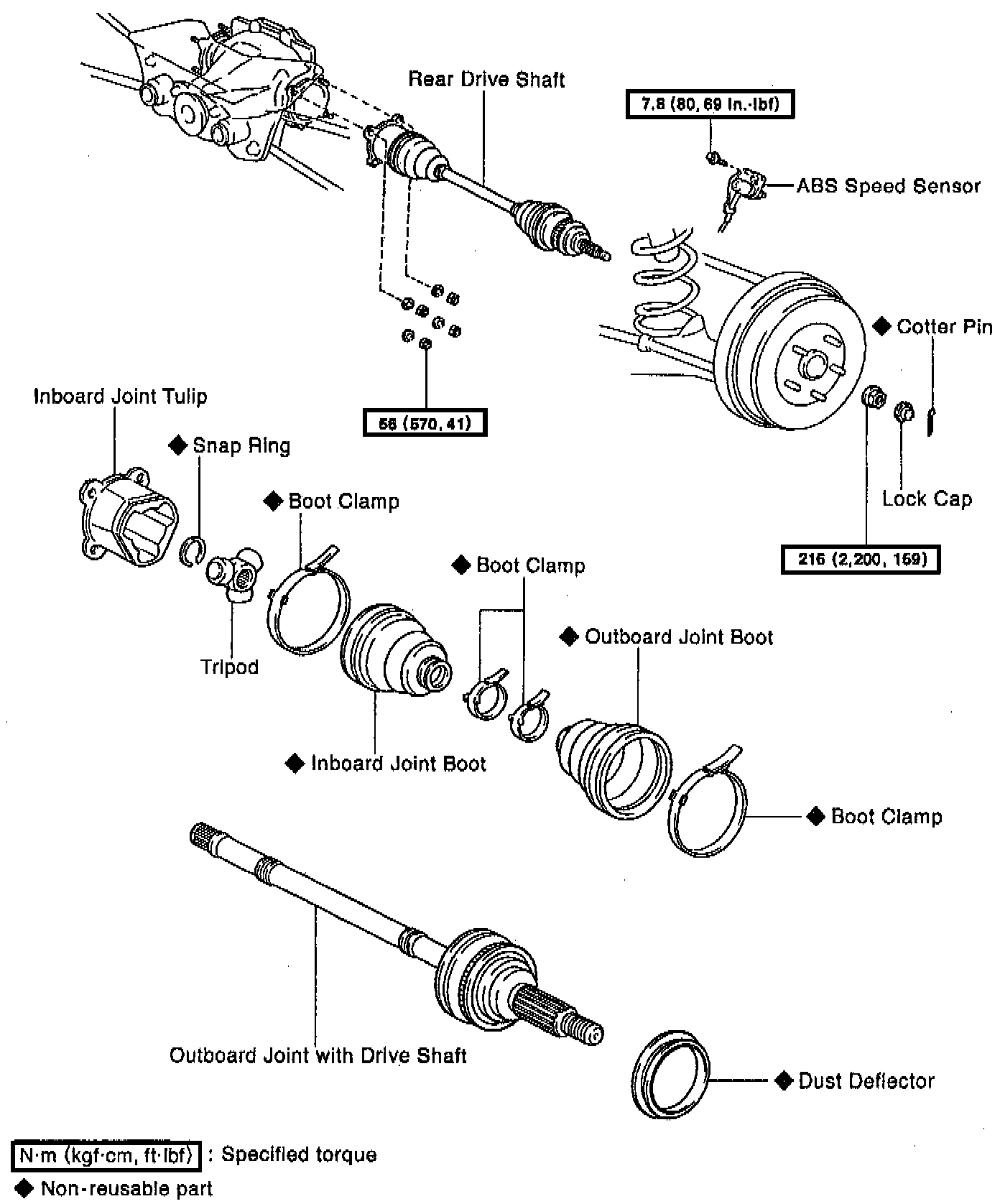

Rear Drive Shaft Components:
