Axle Shaft
>>

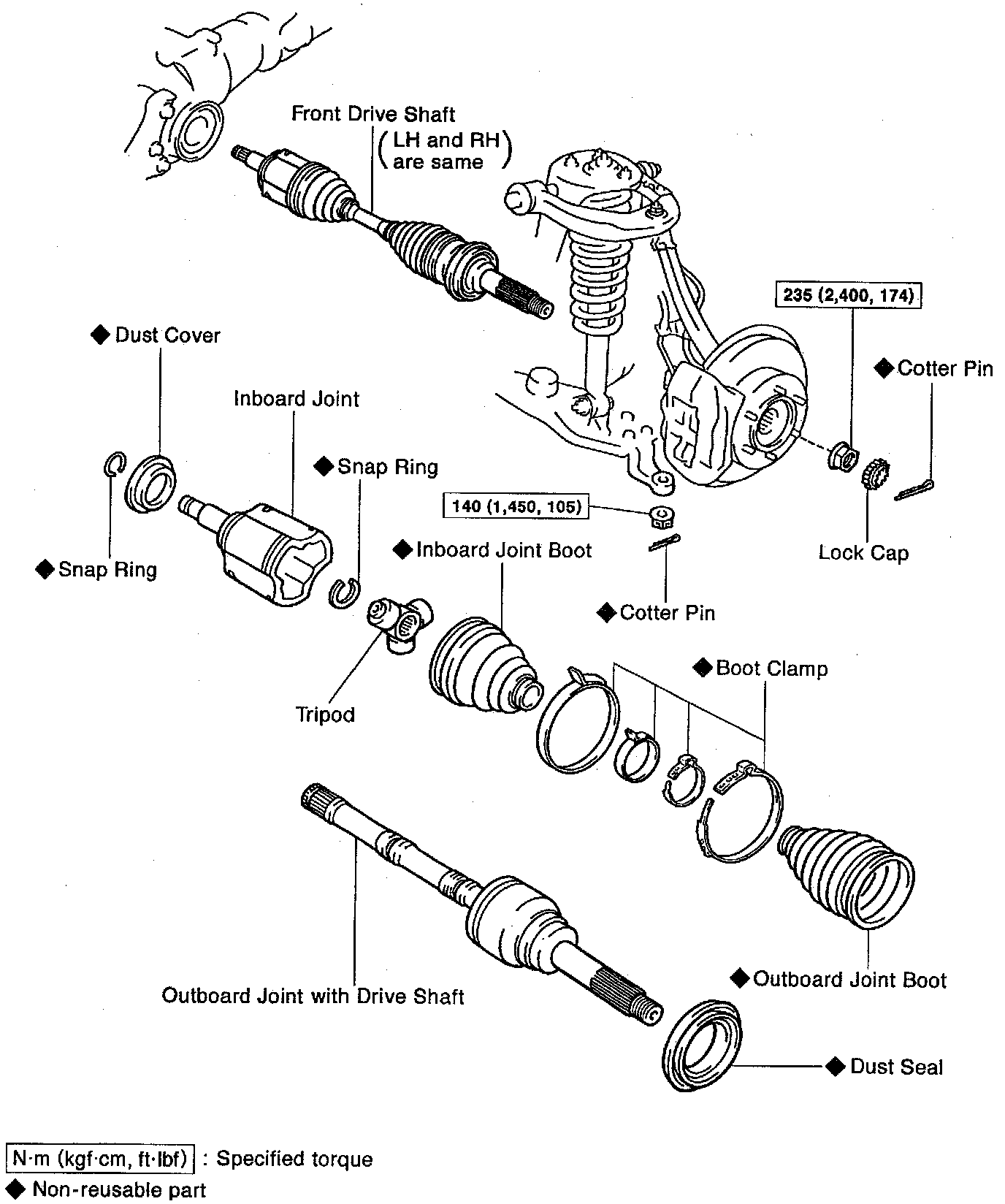

Axle Shaft Assembly, Constant Velocity Type
Axle Shaft Assembly, Constant Velocity Type
Front Drive Shaft:
