Toyota Truck
>>
1998
>>
4 Runner SR5 4WD V6-3.4L (5VZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Four Wheel Drive Selector Switch
>>
Without 2-4 Select SW
Without 2-4 Select SW

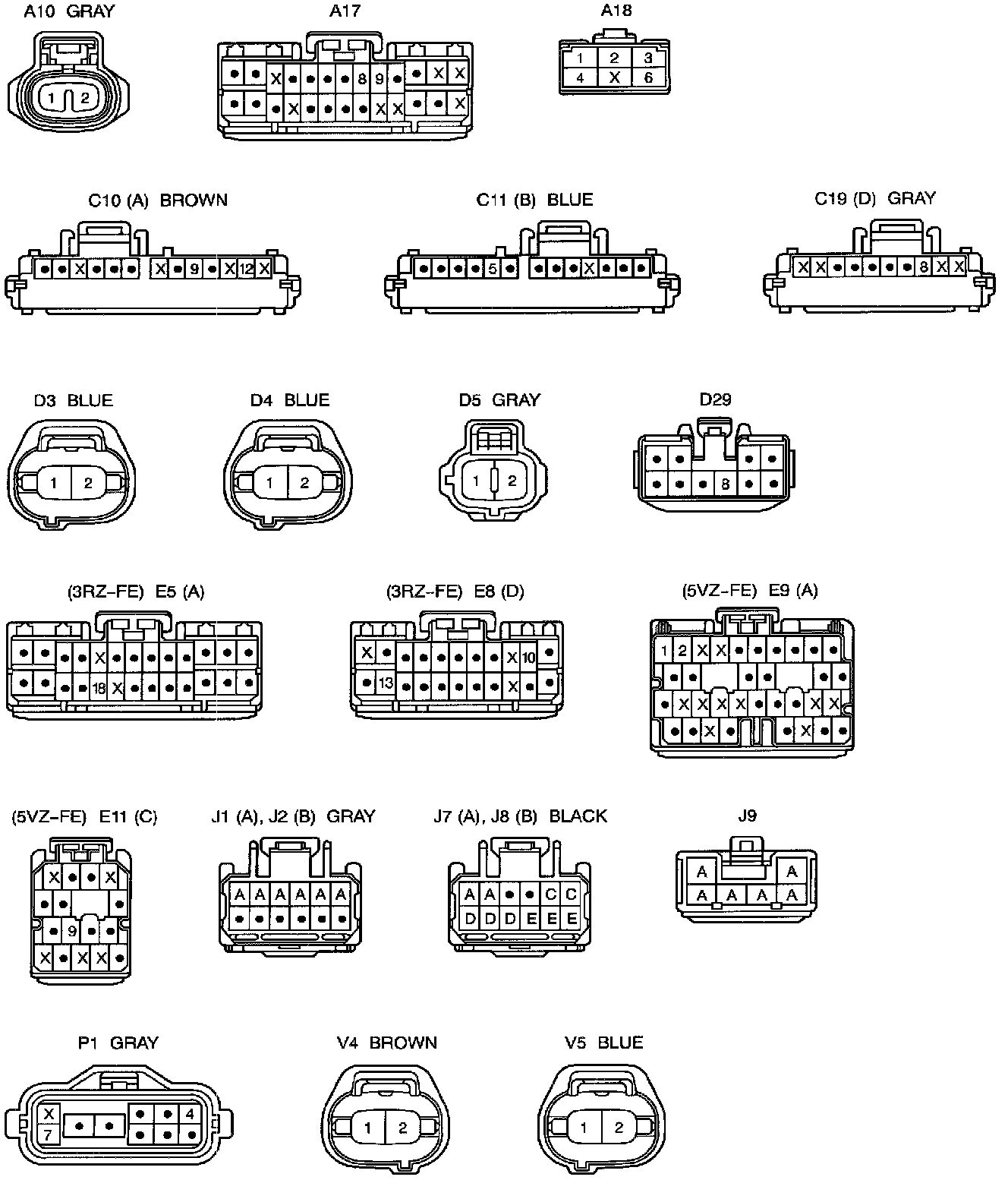

4WD (W/O 2-4 Select SW)-Connectors:
