Condenser HVAC: Service and Repair

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

HINT: At the time of installation, please refer to the following item.
Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.
Specified amount: 650 ± 50 g (22.92 ± 1.76 oz.)

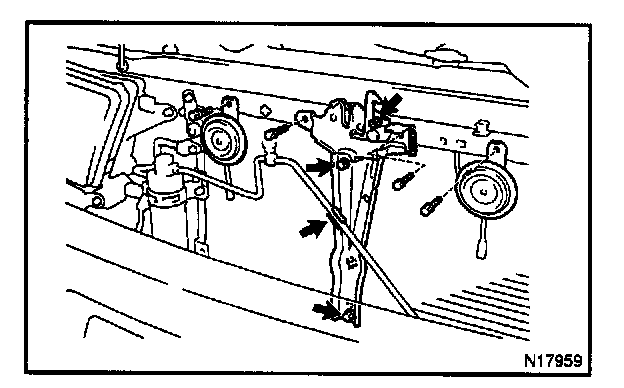

2. REMOVE THESE PARTS:
a. Radiator Grills
b. Horn
c. Hood Lock
d. Center Brace
e. Receiver and holder

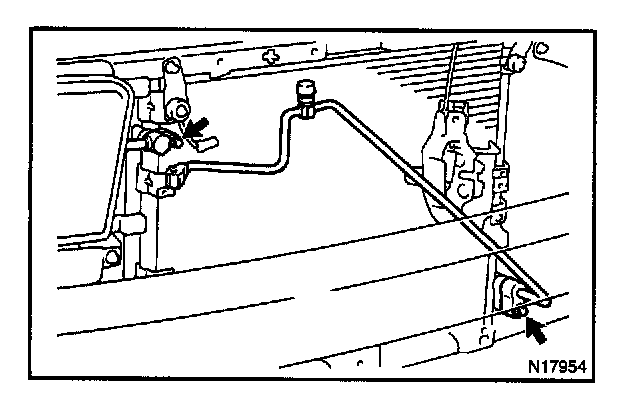

3. DISCONNECT LIQUID TUBE AND DISCHARGE HOSE
Remove the 2 bolts and disconnect the both tube and hose.
Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

NOTE: Cap open the fittings immediately to keep moisture or dirt out of the system.

HINT: At the time of installation, please refer to the following item.
Lubricate 2 new O-rings with compressor oil and install the tubes.




4. REMOVE CONDENSER
a. Remove the 2 bolts and 2 lower brackets.
b. Remove the 4 bolts and 2 upper brackets.
c. Pull the condenser forward and pull it upward.

HINT: At the time of installation, please refer to the following item.
If condenser is replaced, add compressor oil to the compressor.
Add 40 - 50 cc (1.4 - 1.7 fl.oz.)
Compressor oil: ND-OIL 8 or equivalent

INSTALLATION
Installation is in the reverse order of removal.
