Front

REMOVAL
1. Remove speed sensor.

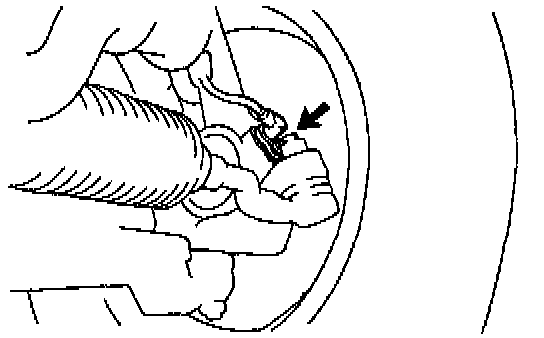

a. Disconnect the speed sensor connector.

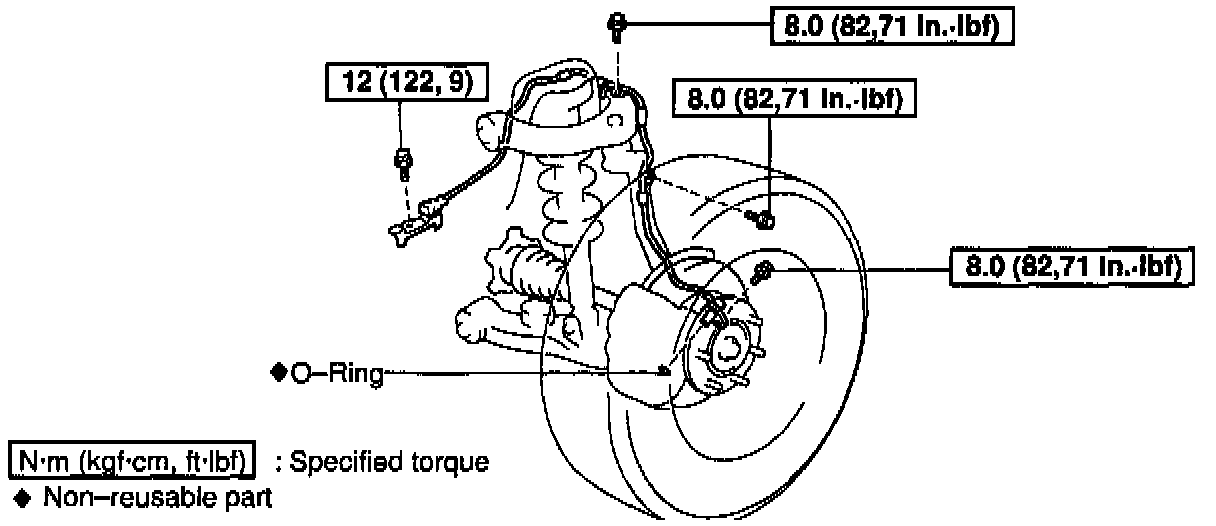

b. Remove the 4 resin clips and 3 clamp bolts holding the sensor harness from the steering knuckle, upper arm and side rail.
Torque:
Steering knuckle and upper arm: 8.0 Nm (71 inch lbs.)
Side rail: 12 Nm (9 ft. lbs.)
c. Remove the speed sensor installation bolt from the steering knuckle.
Torque: 8.0 Nm (71 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.

CAUTION:
- There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
- The sensor is installed flat against the knuckle when you tighten the bolt.
- When installing the resin clips, use new ones.
