Back Door Power Window Control System
Back Door Power Window Control System
INSPECT BACK DOOR CONTROL RELAY CIRCUIT

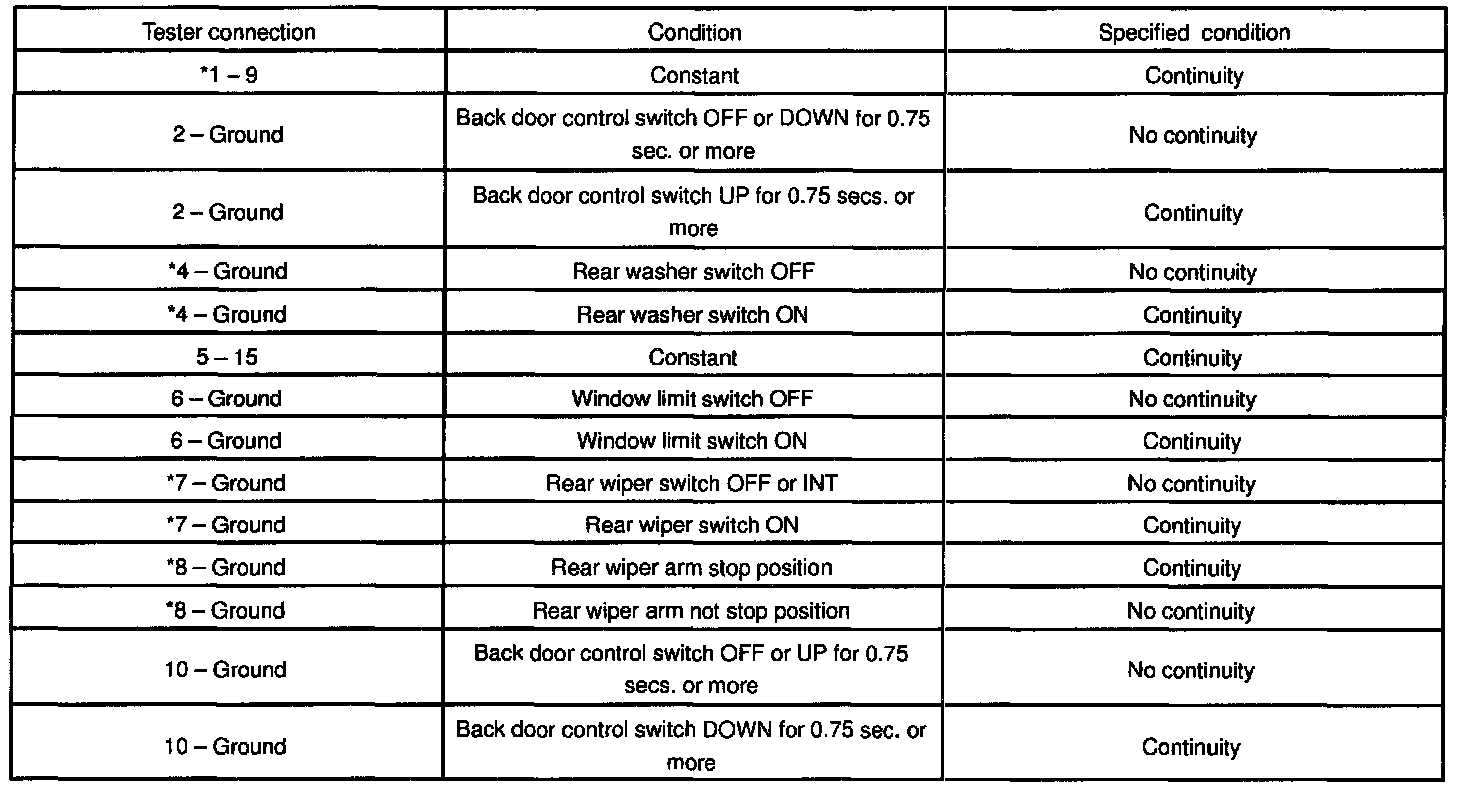

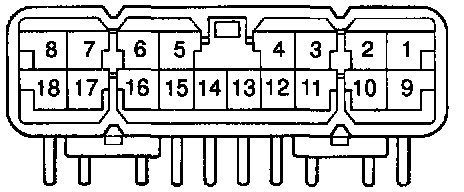

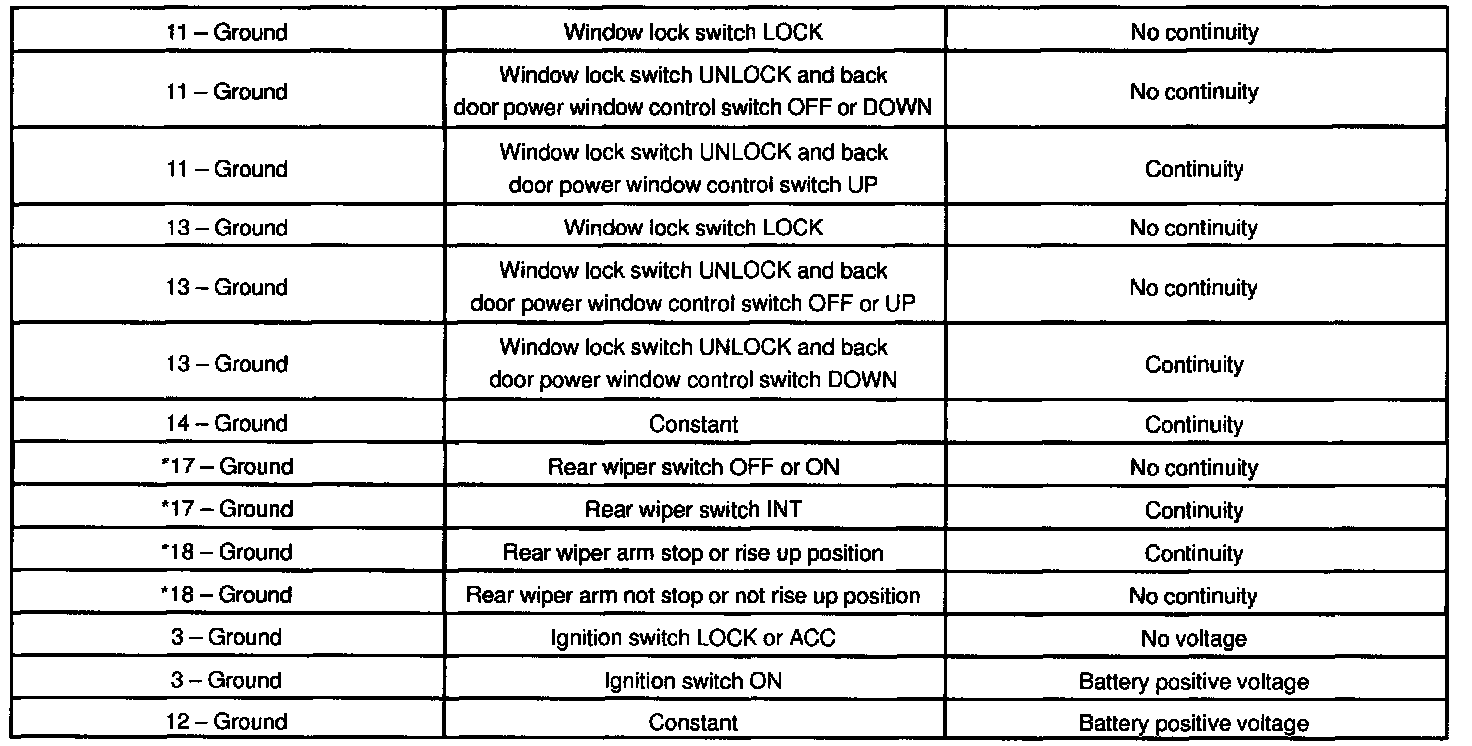

Disconnect the connector from the control relay and inspect the connector on the wire harness side.
If circuit position is correct, replace the relay.
