Removal and Installation

COMPONENTS

REMOVAL
1. REMOVE COOLING UNIT
2. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all the coolant.

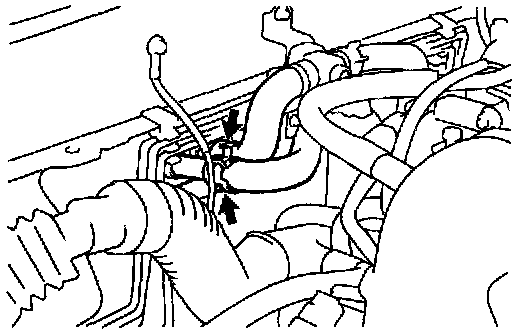

3. DISCONNECT WATER HOSES FROM HEATER RADIATOR PIPES






HINT: At the time of installation, please refer to the following items.

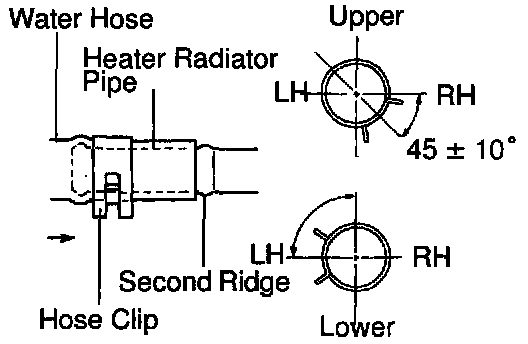

^ Push the water hose onto the heater radiator pipe as far as the second ridge on the pipe.
^ Install the hose clip in a position, as shown in the illustration.

4. REMOVE INSTRUMENT PANEL AND REINFORCEMENT
5. REMOVE DEFROSTER NOZZLE AND HEATER TO REGISTER DUCT
6. REMOVE HEATER UNIT
Remove the 2 nut and heater unit.

INSTALLATION
Installation is in the reverse order of removal.
