Evaporator Temperature Sensor / Switch: Service and Repair

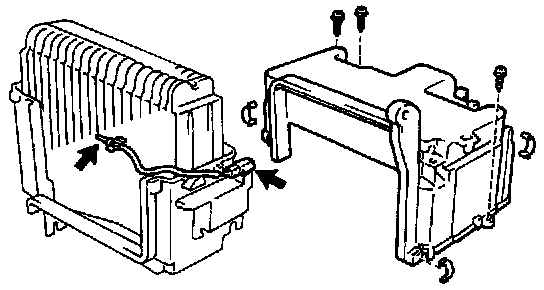

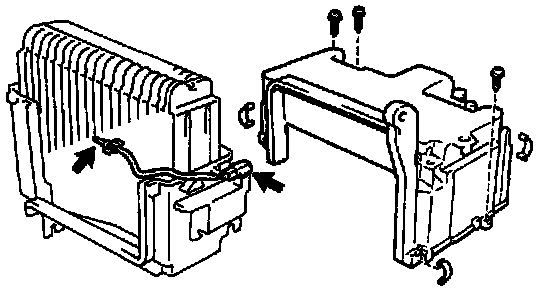

REMOVAL
1. REMOVE EVAPORATOR

2. REMOVE THERMISTOR
a. Disconnect the connector clamp.
b. Pull out the thermistor from evaporator.

INSTALLATION
Installation is in the reverse order of removal.
