Cylinder Head Assembly

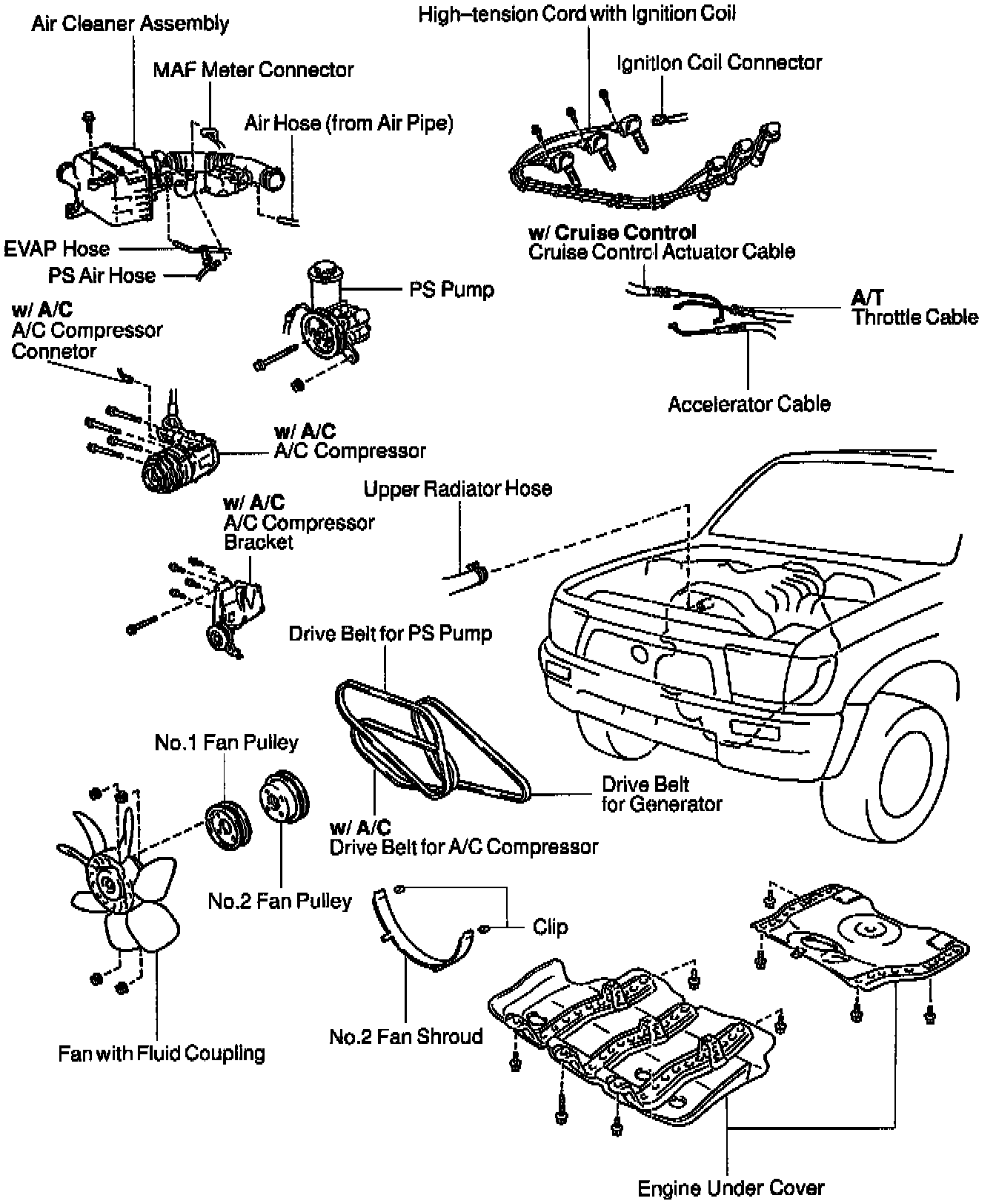

UNDERHOOD VIEW

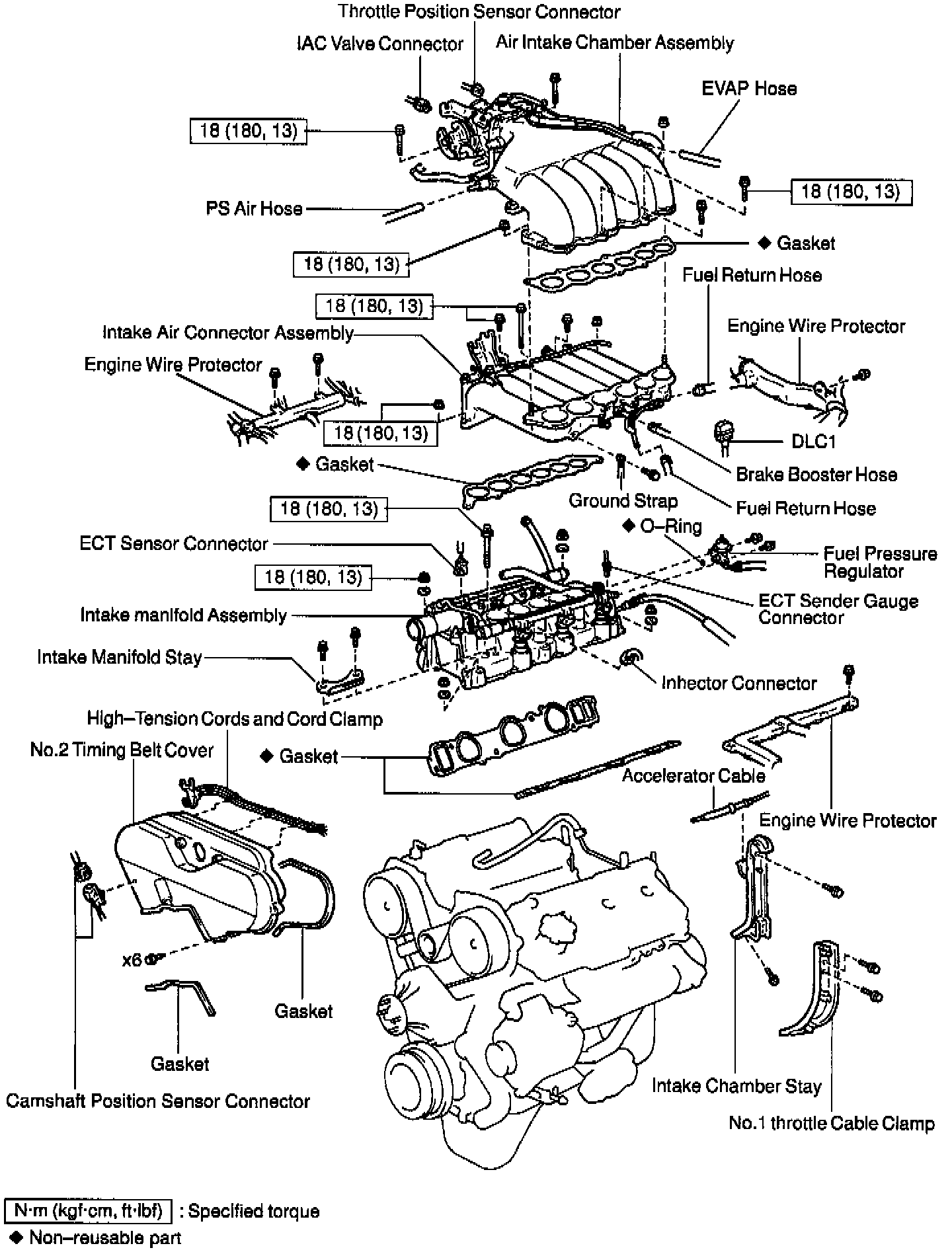

INTAKE MANIFOLD ASSEMBLIES AND RELATED COMPONENTS

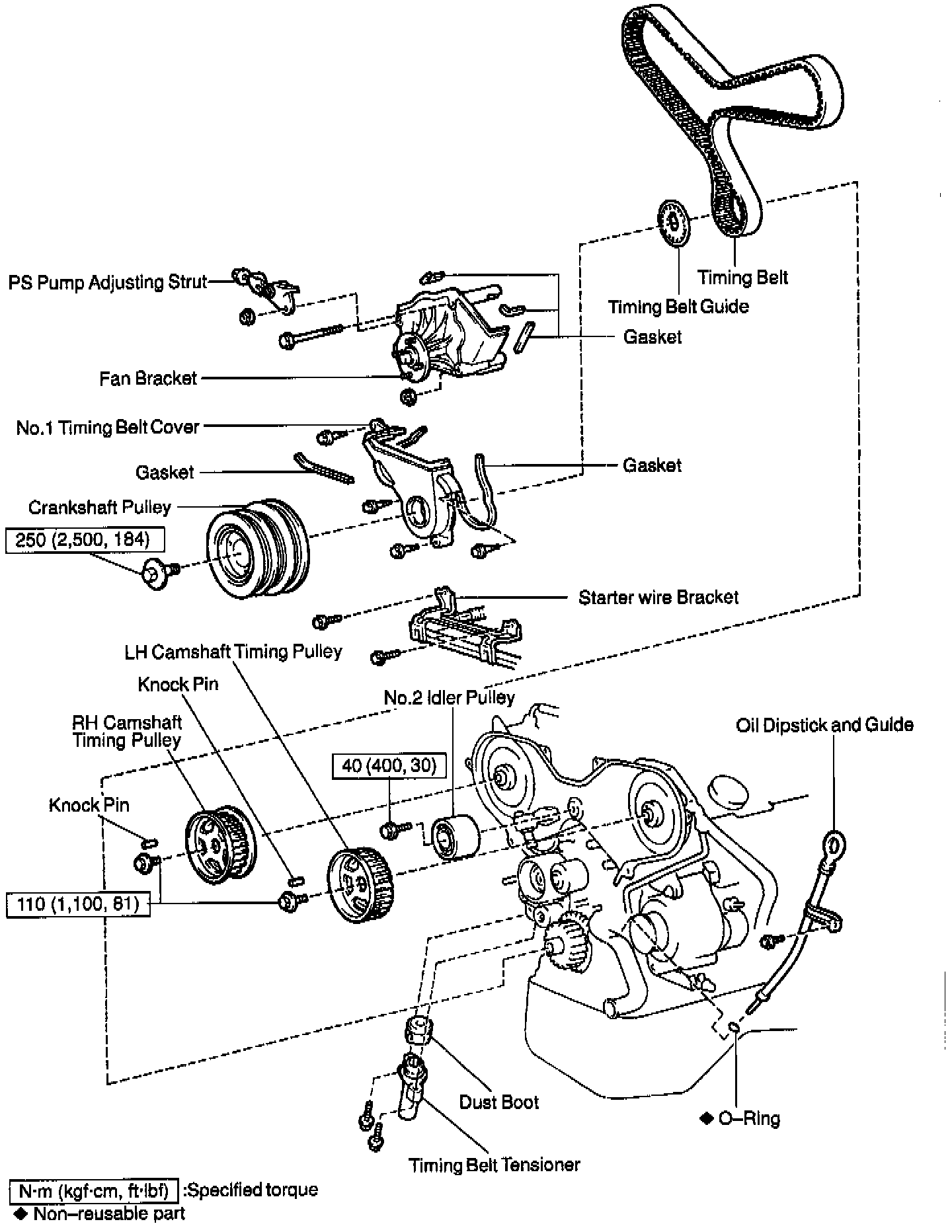

TIMING COMPONENTS

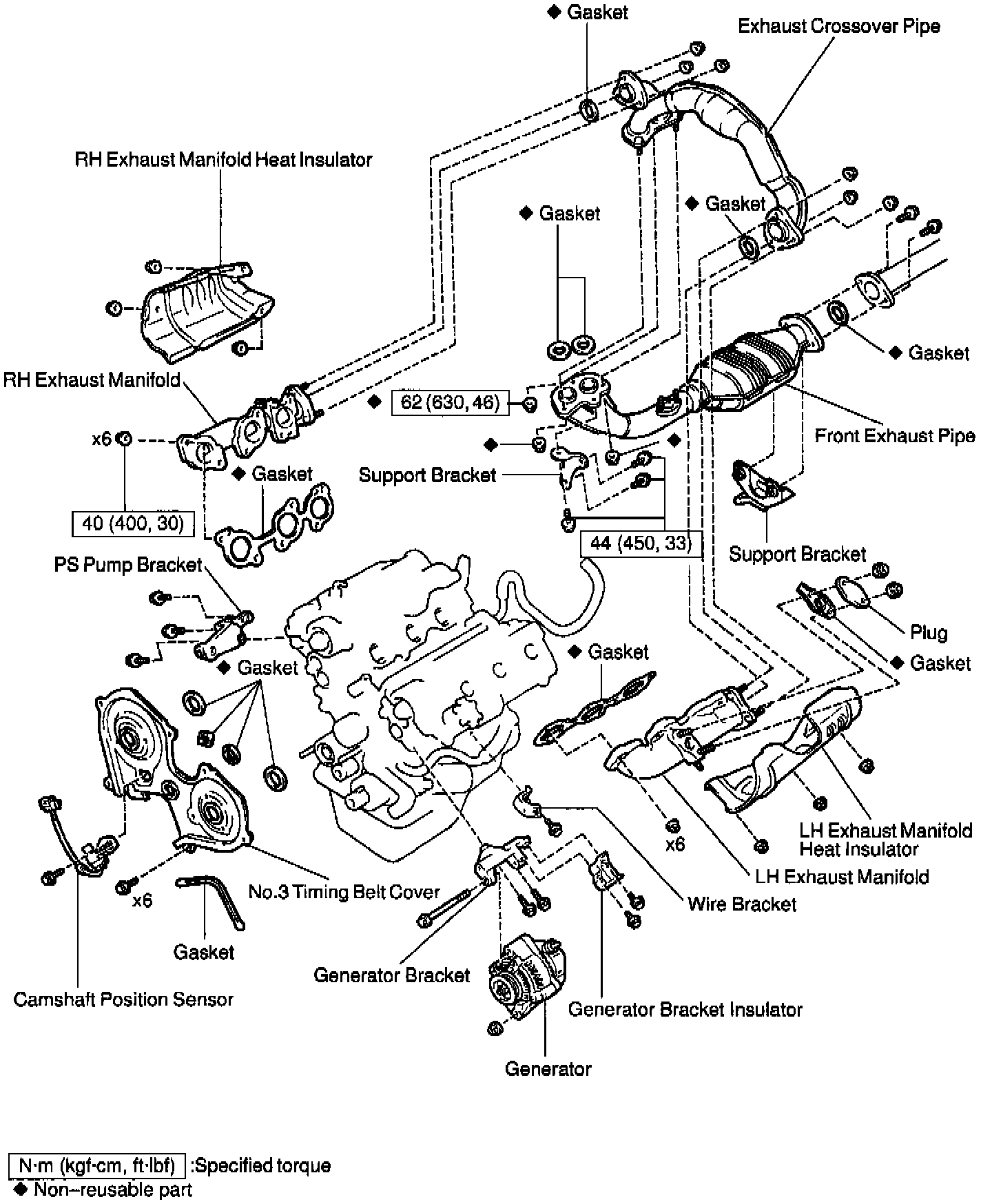

EXHAUST MANIFOLDS AND RELATED COMPONENTS

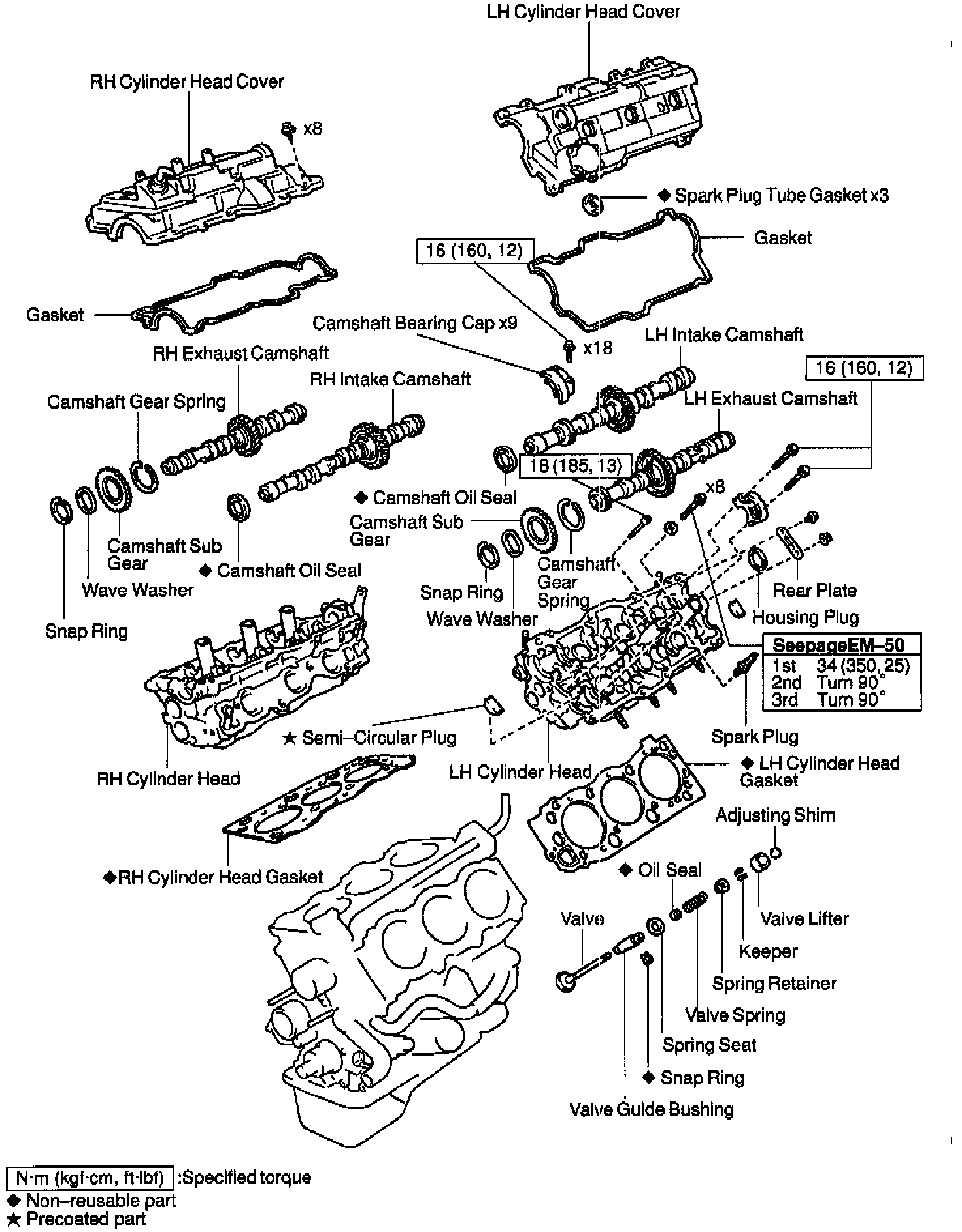

CYLINDER HEAD ASSEMBLIES
