Power Door Lock Switch: Testing and Inspection

Master Switch:

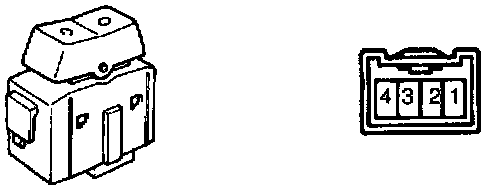

INSPECT DRIVER'S DOOR LOCK CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







INSPECT PASSENGER'S DOOR LOCK CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







w/o POWER WINDOW:

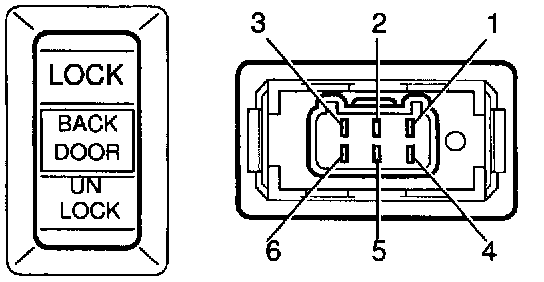

INSPECT BACK DOOR LOCK SWITCH CONTINUITY
If continuity is not as specified, replace the switch.







INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

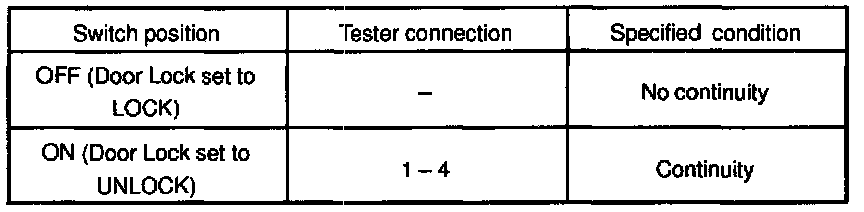

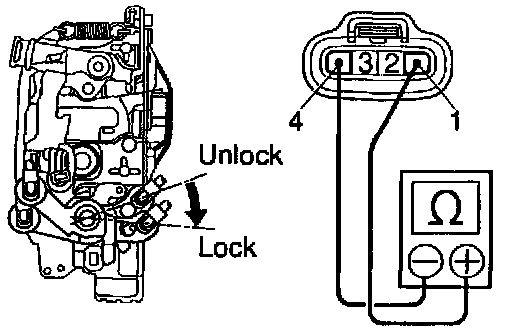

INSPECT DRIVER'S DOOR UNLOCK DETECTION SWITCH CONTINUITY
It continuity is not as specified, replace the switch.

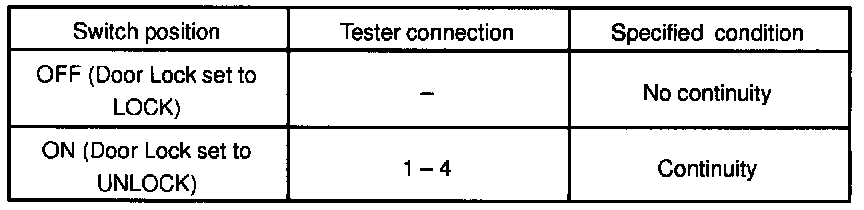

INSPECT PASSENGER'S DOOR UNLOCK DETECTION SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
