EGR Tube: Service and Repair

EGR PIPE REMOVAL

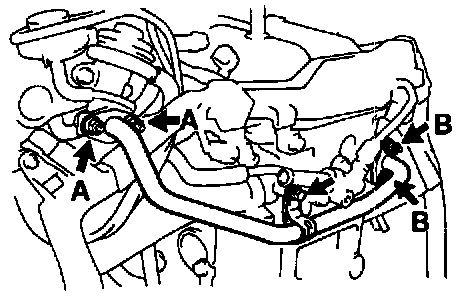

Remove the bolt, 4 nuts, EGR pipe and 2 gaskets.

HINT: Install 2 new gaskets.

Torque:
Bolt: 18 N.m (185 kgf.cm, 13 ft.lbf)
Nut A: 19 N.m (195 kgf.cm, 14 ft.lbf)
Nut B: 20 N.m (200 kgf.cm, 15 ft.lbf)
