General Torque Specifications

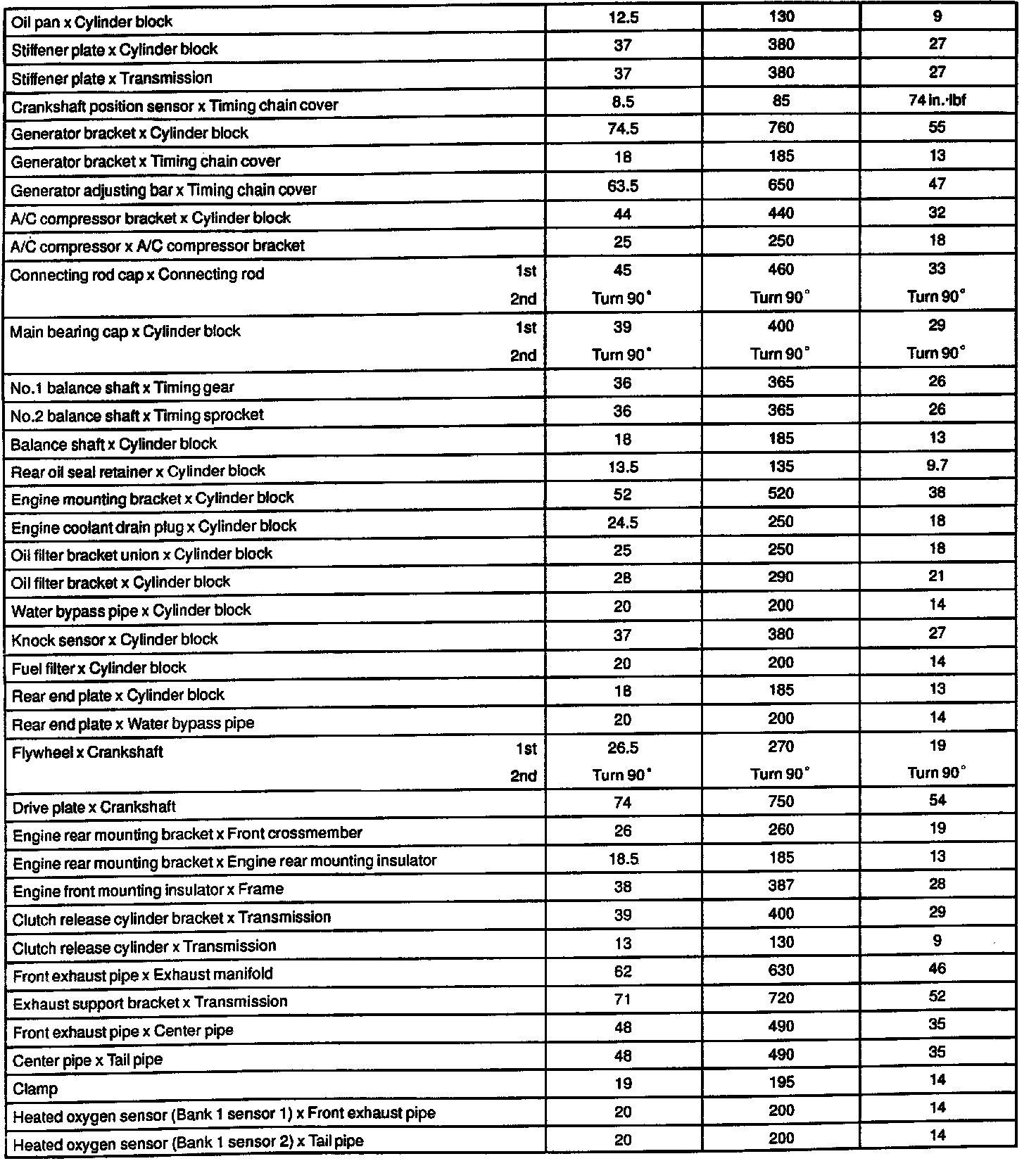

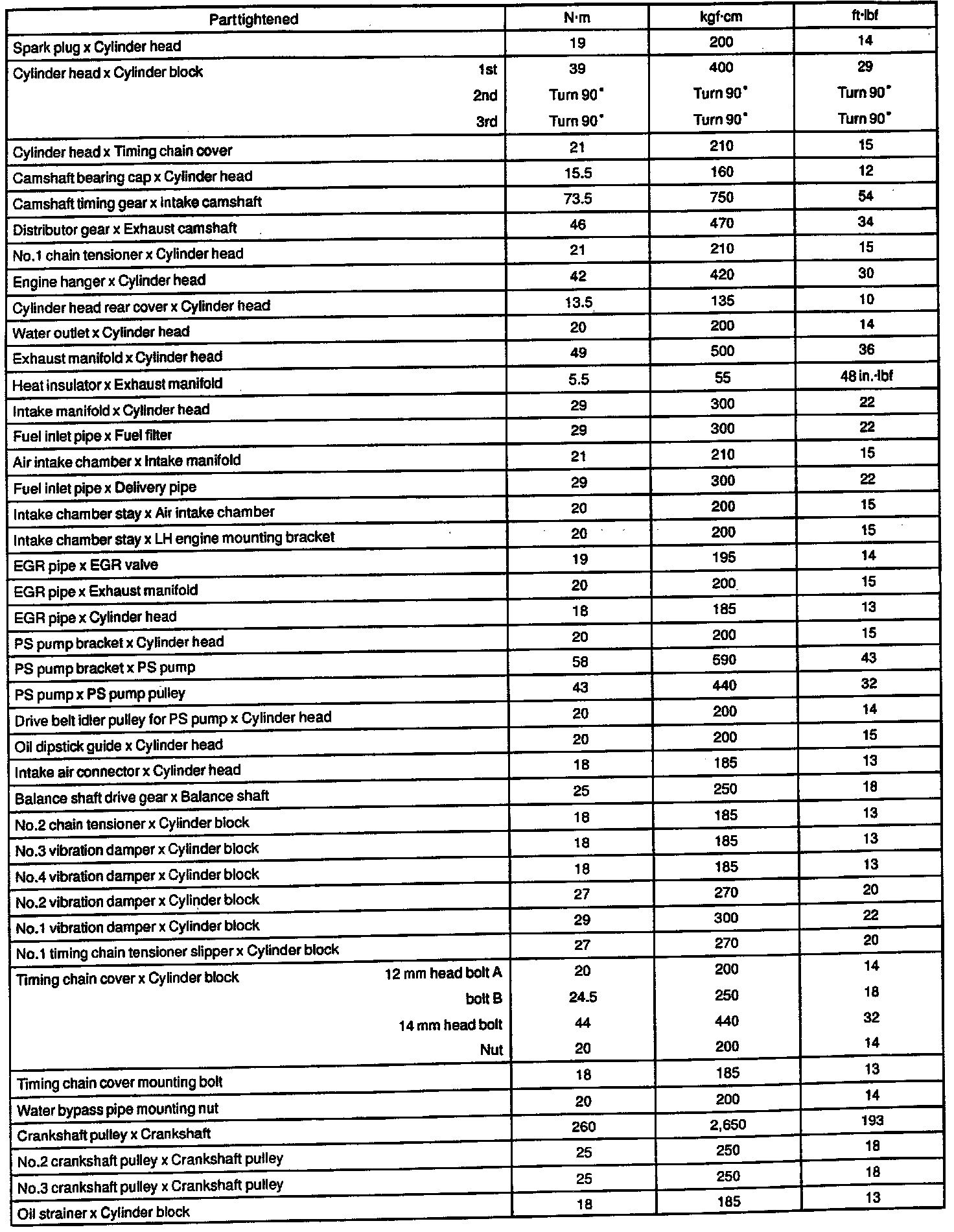

TORQUE CHART








TORQUE SEQUENCES

Exhaust Camshaft Bearing Cap Removal Sequence








Intake Camshaft Bearing Cap Removal Sequence








Camshaft Bearing Cap Tightening Sequence
Proper installation procedures are essential to camshaft durability and to avoid damage. Refer to Camshaft, Engine; Service and Repair for detailed camshaft installation procedures.

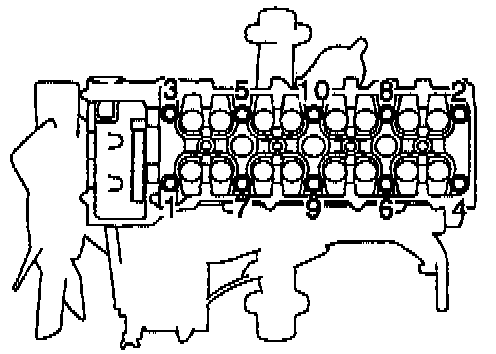

Cylinder Head Bolt Removal Sequence

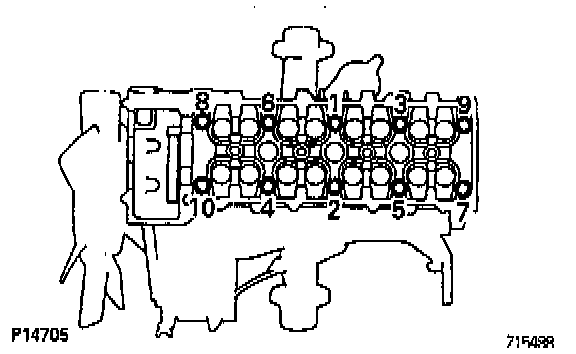

Cylinder Head Bolt Tightening Sequence

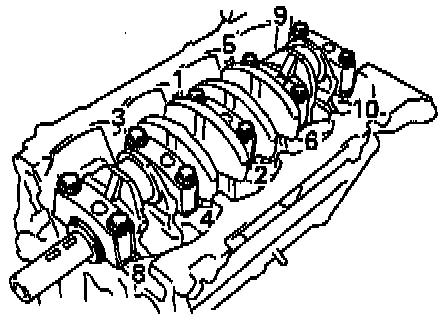

Main Bearing Cap Bolts Removal Sequence

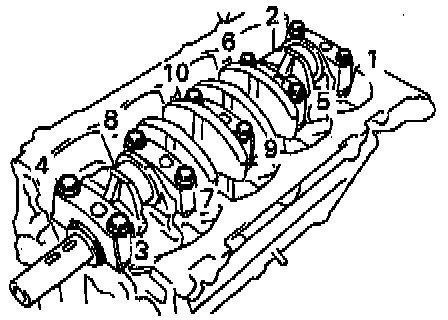

Main Bearing Cap Bolts Tightening Sequence





Flywheel/Drive Plate Bolt Tightening Sequence

Sequence:

See also: Refer to Diagrams/Exploded Views at component level.
