Heater Control Assembly

HEATER CONTROL ASSEMBLY INSPECTION

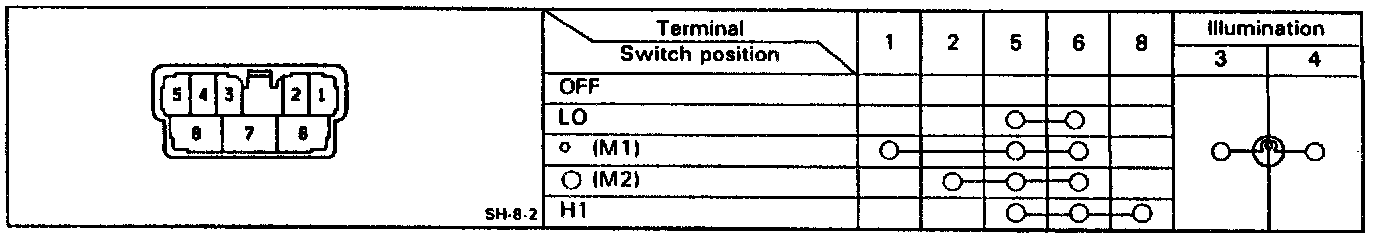

1. INSPECT BLOWER SPEED CONTROL SWITCH CONTINUITY
If continuity is not as specified, replace the blower speed control switch.

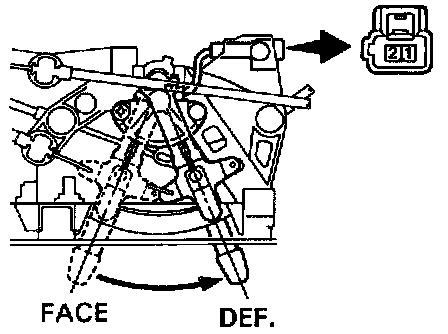

2. INSPECT DEF. MODE SWITCH OPERATION
Move the mode lever to DEF. position, then check that there is continuity between terminals.

If operation is not as specified, replace the switch.

HINT: If cable's adjustment is in need, refer to HEATER CONTROL CABLE ADJUSTMENT. Adjustments
