Heater Control Assembly

HEATER CONTROL ASSEMBLY REMOVAL







1. REMOVE THESE PARTS:
a. instrument lower finish panel
b. Glove compartment door

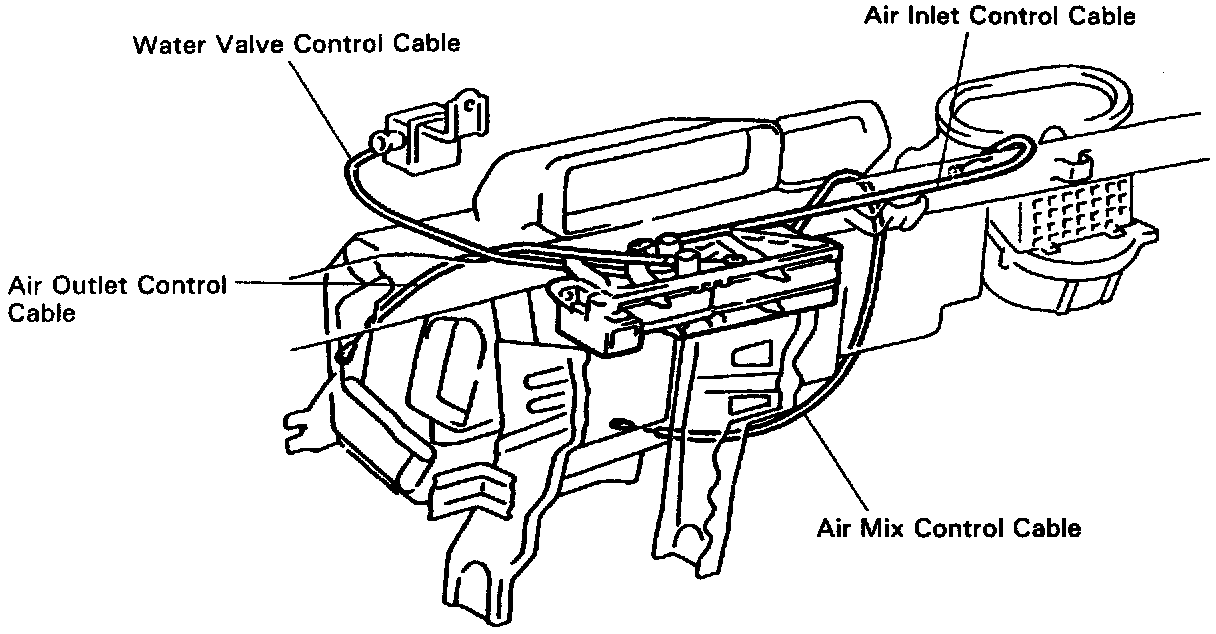

2. DISCONNECT HEATER CONTROL CABLES

Control Assembly:

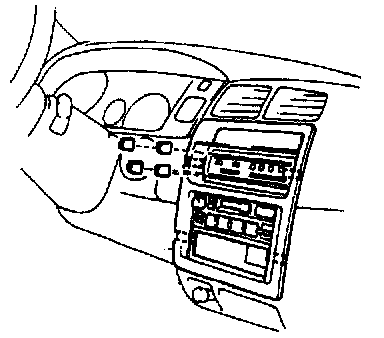

3. REMOVE THESE PARTS:
a. Heater control knobs
b. A/C switch
c. A/C control panel

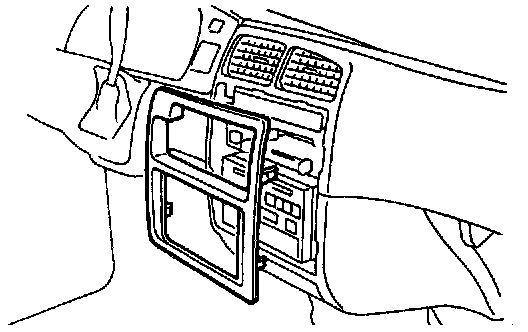

4. REMOVE INSTRUMENT PANEL CENTER LOWER FINISH PANEL







5. REMOVE HEATER CONTROL ASSEMBLY
Remove the 3 screws and heater control assembly, then disconnect the the connectors.


CONTROL ASSEMBLY INSTALLATION
Installation is in the reverse order of removal.

HINT: If cable's adjustment is in need, refer to HEATER CONTROL CABLE ADJUSTMENT.
Adjustments
