Air Conditioning Control Assembly

SWITCHES REMOVAL

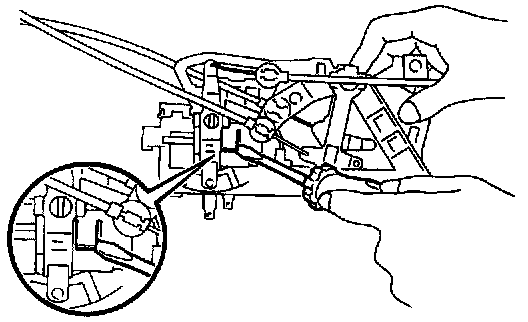

1. REMOVE BLOWER SPEED CONTROL SWITCH
a. Remove the illumination light from the heater control assembly.
b. Using a screwdriver, pry loose the clip and push out the blower speed control switch to rear of the heater control assembly.


REMOVAL HINT: Tape the screwdriver tip before use.

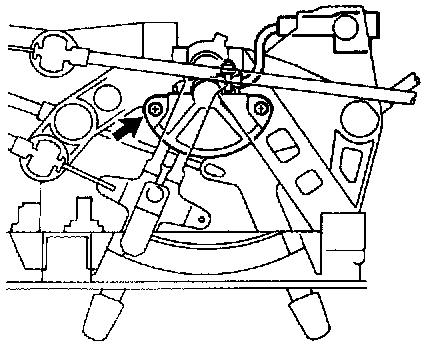

2. REMOVE DEF. MODE SWITCH
a. Remove the connector clamp.
b. Remove the screw and switch.

SWITCHES INSTALLATION
Installation is in the reverse order of removal.
