General Module: Testing and Inspection

INTEGRATION RELAY INSPECTION

Integration Relay Inspection:

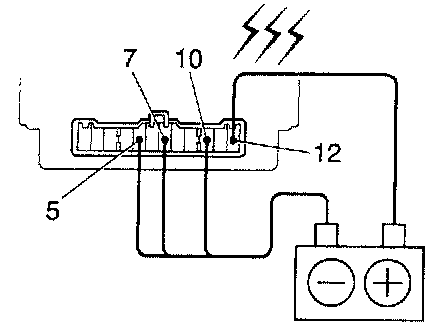

1. INSPECT KEY UNLOCK WARNING OPERATION
(a) Connect the positive (+) lead from the battery to terminal 1 2.
(b) Connect the negative (-) lead from the battery to terminals 5, 7 and 1 0.
(c) Check the chime sounds.

Integration Relay Inspection:

(d) Disconnect the negative (-) lead from the battery to terminal 10.
(e) Check that the chime stops sounding.

Integration Relay Inspection:

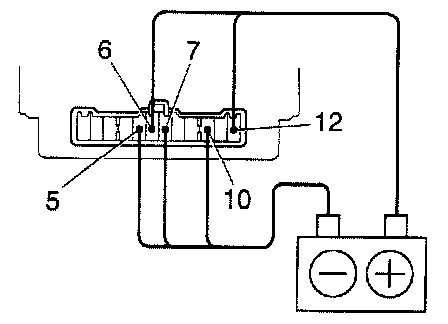

(f) Connect the negative (-) lead from the battery to terminal 10.
(g) Connect the positive (+) lead from the battery to terminal 6.
(h) Check that the chime stops sounding.
If operation is not as specified, replace the relay.

Inspect Relay Circuit:

2. INSPECT RELAY CIRCUIT

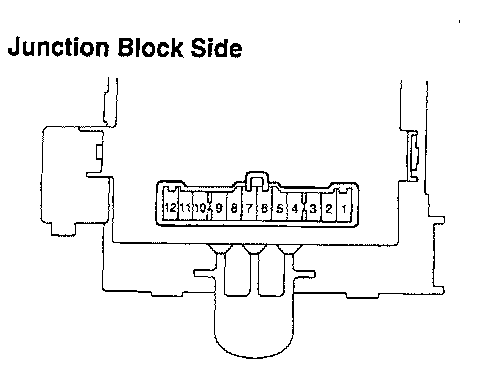

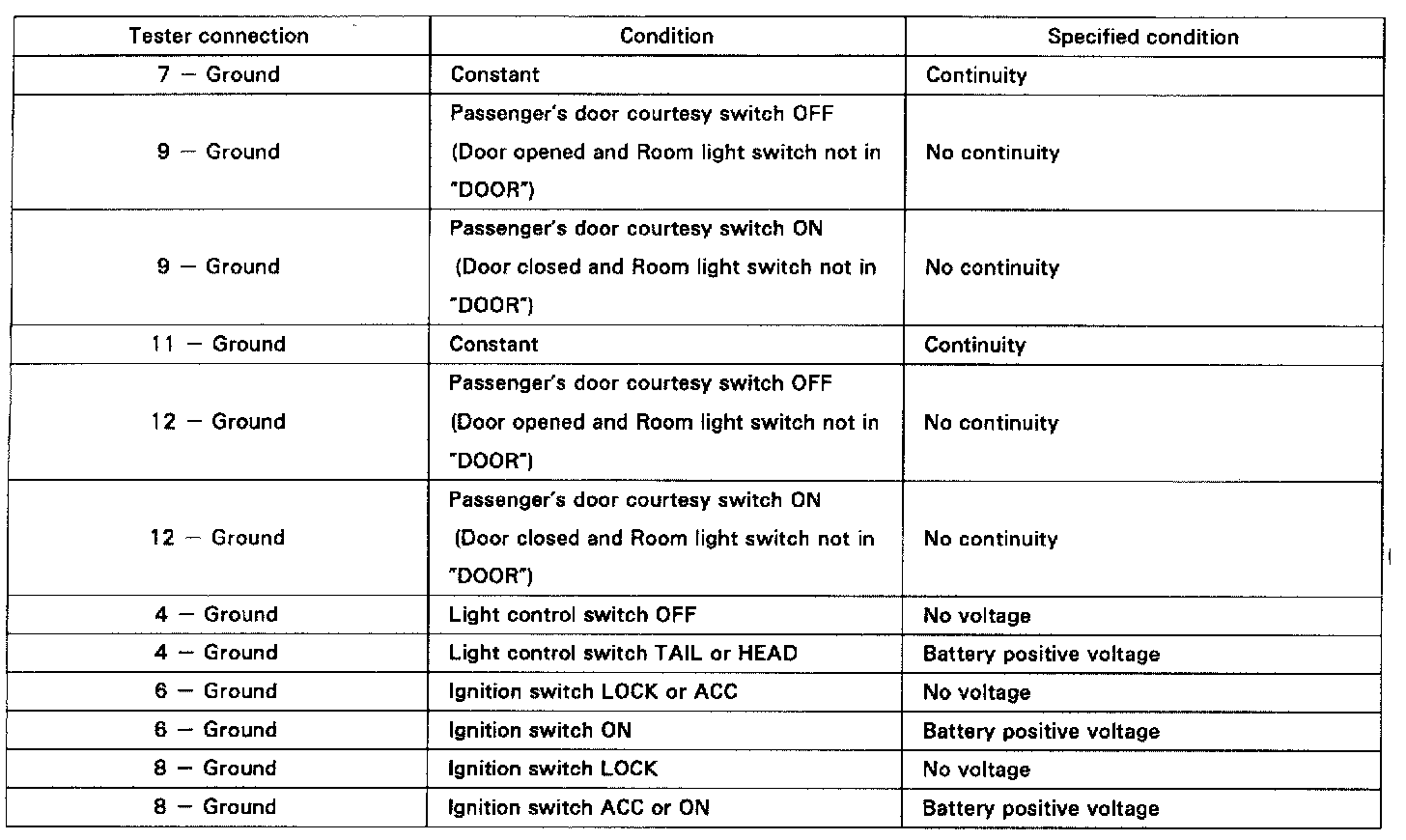

Remove the relay from the junction block No.1 and inspect the connectors on the junction block side.






If circuit is as specified, try replacing the relay with a new one.
If circuit is not as specified, inspect the circuits connected to other parts.
