How to Read Adjustment Chart

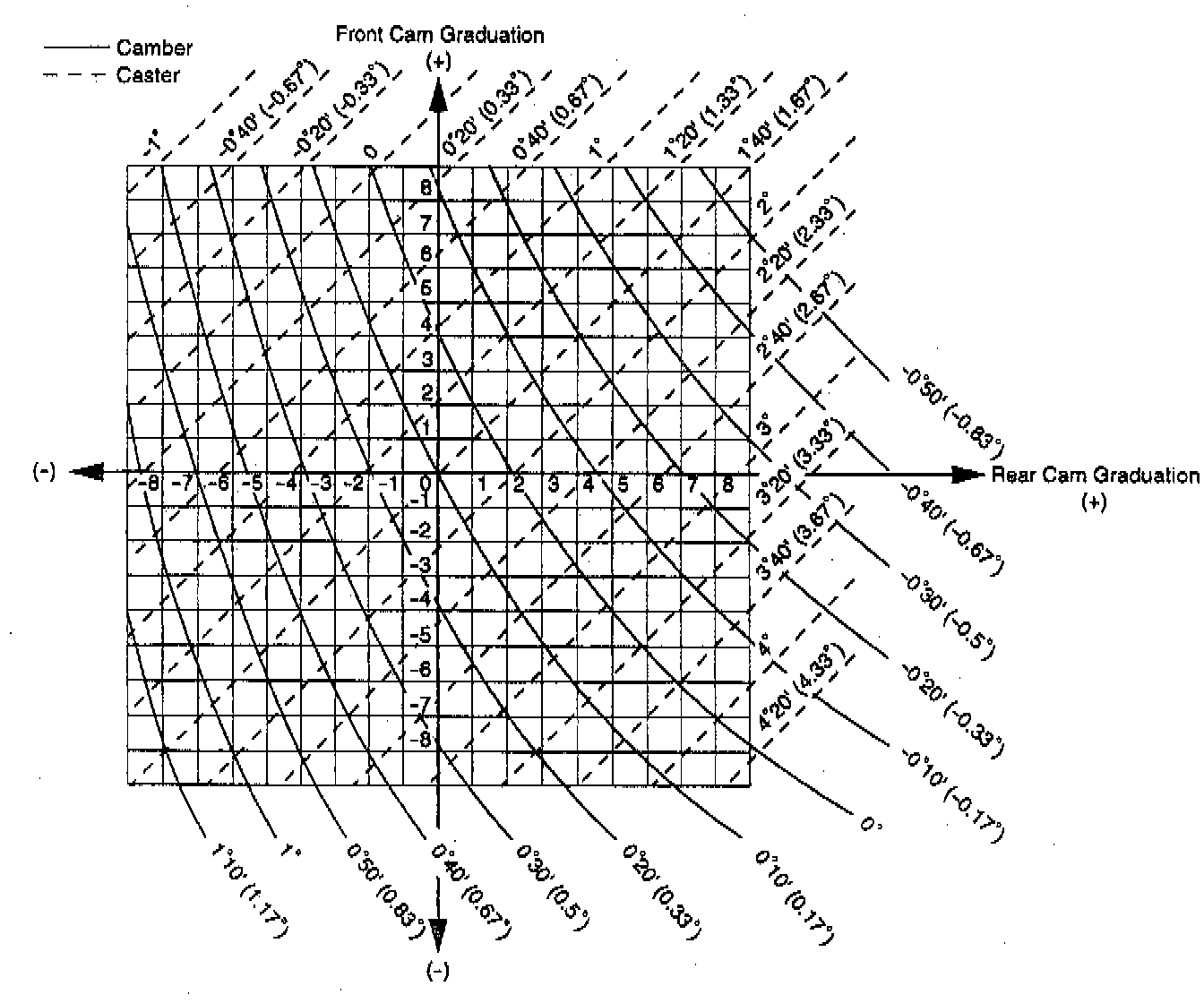

Adjustment Chart:

HOW TO READ ADJUSTMENT CHART
a. Find the wheel alignment standard value applicable for the particular model.
b. Mark the selected standard value on the adjustment chart.

Adjustment Chart:

Example (VZN160L):
Camber: 0° 15' (0.25°)
Caster: 1° 35'(1.58°)

c. Mark on the adjustment chart the alignment values measured at the non-loaded vehicle height.

Example:
Camber: 0° 10'(0.17°)
Caster: 2° 20' (2.33`°)

d. As shown in the illustration, read the distance from the standard value to the measured value, and adjust the front and/or rear adjusting cams accordingly.

Example:
Front cam: +(Longer) 2.4
Rear cam: -(Shorter) 2.4
