Heater Core: Service and Repair

HEATER RADIATOR REMOVAL


Heater Unit:






1. REMOVE HEATER UNIT
Heater Core Case

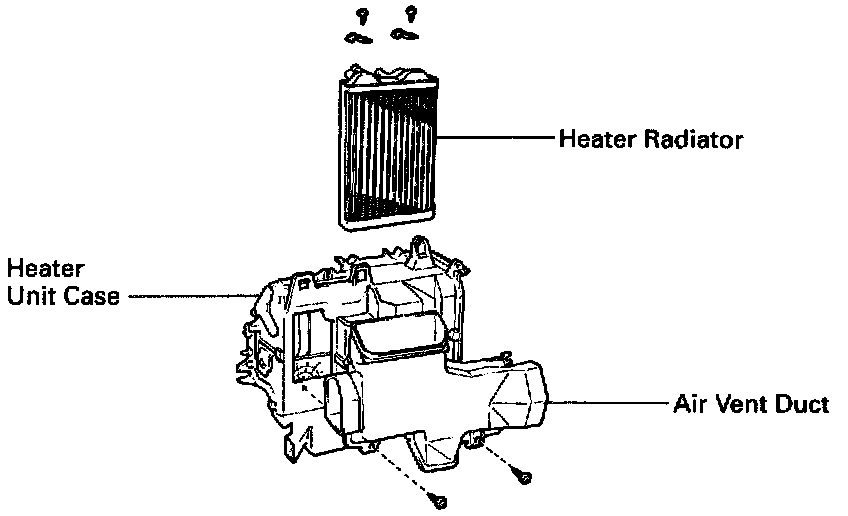

2. REMOVE HEATER RADIATOR
a. Remove the 2 screws and the 2 plates.
b. Pull the heater radiator out.


HEATER RADIATOR INSTALLATION
Installation is in the reverse order of removal.
