Component Inspection

1. REMOVE GLOVE COMPARTMENT DOOR


2. DISCONNECT CONNECTOR OF THERMISTOR







3. CHECK RESISTANCE OF THERMISTOR

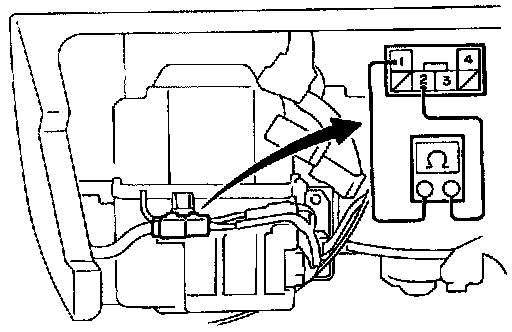

Measure resistance between 1 and 2 terminals.

Standard resistance:
1,500 Ohms at 25° C (77° F)

If resistance is not as specified, replace the thermistor.
