Air Flow Meter/Sensor: Service and Repair

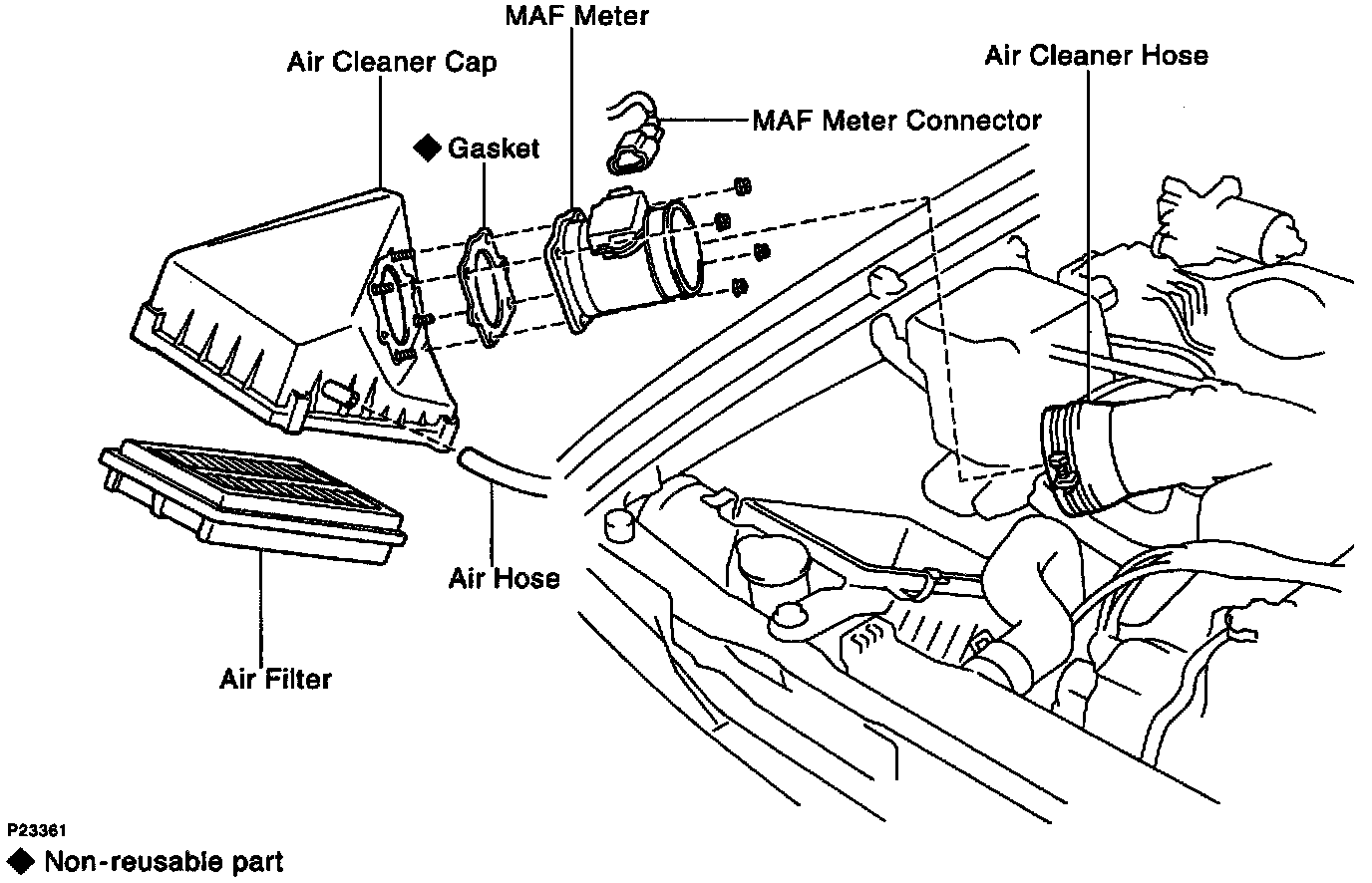

COMPONENTS FOR REMOVAL AND INSTALLATION

MAF METER REMOVAL

1. REMOVE AIR CLEANER CAP WITH MAF METER
(a) Disconnect the MAF meter connector, IAT sensor connector and wire clamp.





(b) Loosen the air cleaner hose clamp.
(c) Disconnect the air hose from the air cleaner cap.
(d) Loosen the 4 clips. and remove the air cleaner cap together with the MAF meter.





2. REMOVE MAF METER FROM AIR CLEANER CAP
Remove the 4 nuts, MAF meter and gasket.

MAF METER INSTALLATION

1. INSTALL MAF METER TO AIR CLEANER CAP

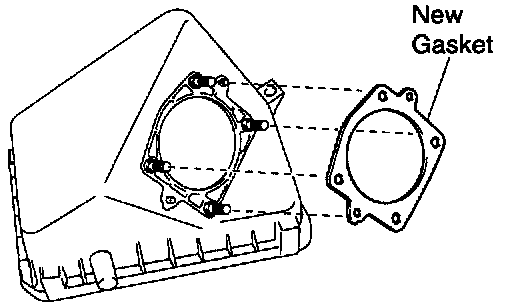

(a) Place a new gasket on the air cleaner cap.

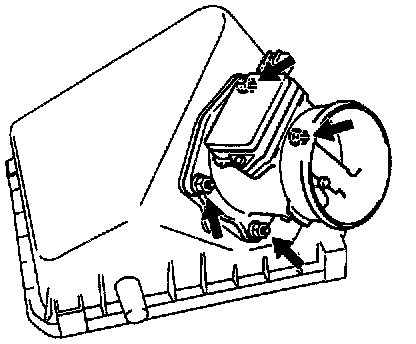

(b) Install the MAF meter with the 4 nuts.

Torque: 8.5 N.m (85 kgf.cm, 74 in.lbf)

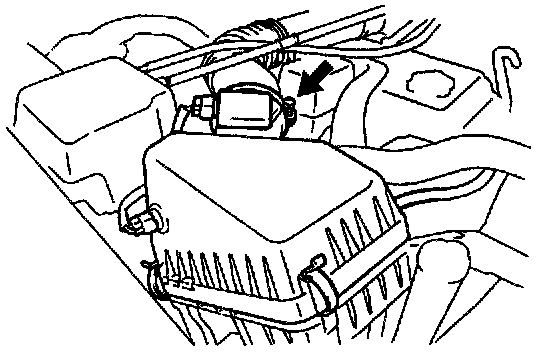

2. INSTALL MAF METER WITH AIR CLEANER CAP
