Knock Sensor: Service and Repair

KNOCK SENSOR REMOVAL

1. REMOVE STARTER

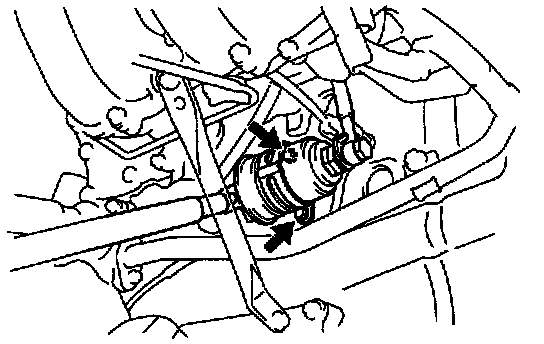

2. REMOVE FUEL FILTER SET BOLTS
3. REMOVE KNOCK SENSOR
(a) Disconnect the knock sensor connector.

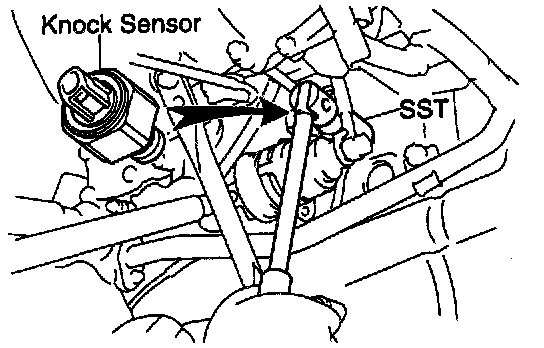

(b) Using SST. remove the knock sensor. SST 09816-30010

KNOCK SENSOR INSTALLATION

1. REINSTALL KNOCK SENSOR
(a) Using SST. install the knock sensor. SST 09816-30010

Torque: 44 N.m (450 kgf.cm, 33 ft.lbf)

(b) Connect the knock sensor connector.
6. REINSTALL FUEL FILTER SET BOLTS

Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)

7. REINSTALL STARTER
