Camshaft Position Sensor: Service and Repair

COMPONENTS FOR REMOVAL AND INSTALLATION

CAMSHAFT POSITION SENSOR REMOVAL

1. REMOVE THROTTLE BODY
2. REMOVE CAMSHAFT POSITION SENSOR

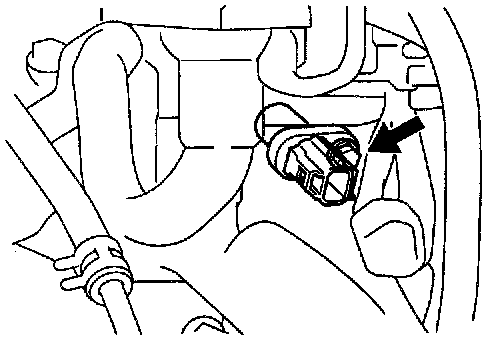

(a) Disconnect the camshaft position sensor connector.





(b) Remove the bolt and camshaft position sensor.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

CAMSHAFT POSITION SENSOR INSTALLATION
Installation is in the reverse order of removal.
