Camshaft

TIGHTENING SPECIFICATIONS
Camshaft Bearing Cap Bolts 15.5 Nm (12 ft. lbs.)

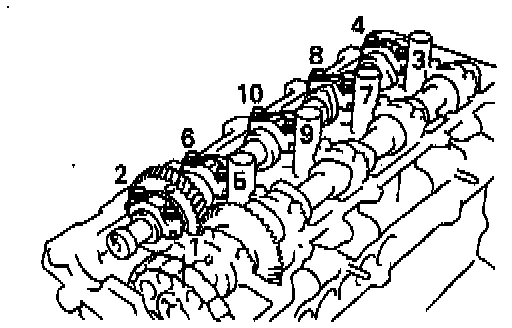

Exhaust Camshaft Bearing Cap Removal Sequence

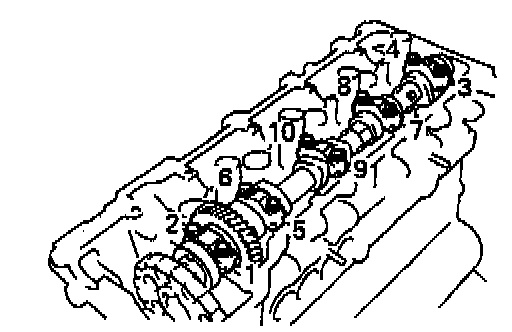

Intake Camshaft Bearing Cap Removal Sequence

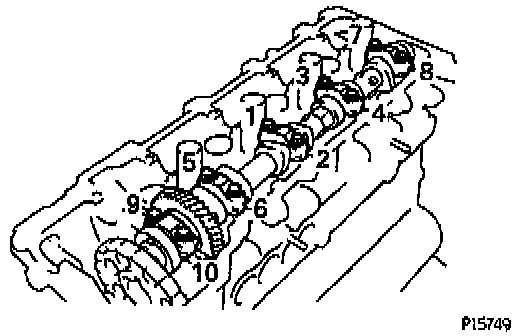

Intake Camshaft Bearing Cap Tightening Sequence






Exhaust Camshaft Bearing Cap Tightening Sequence
