D/F Technical Data

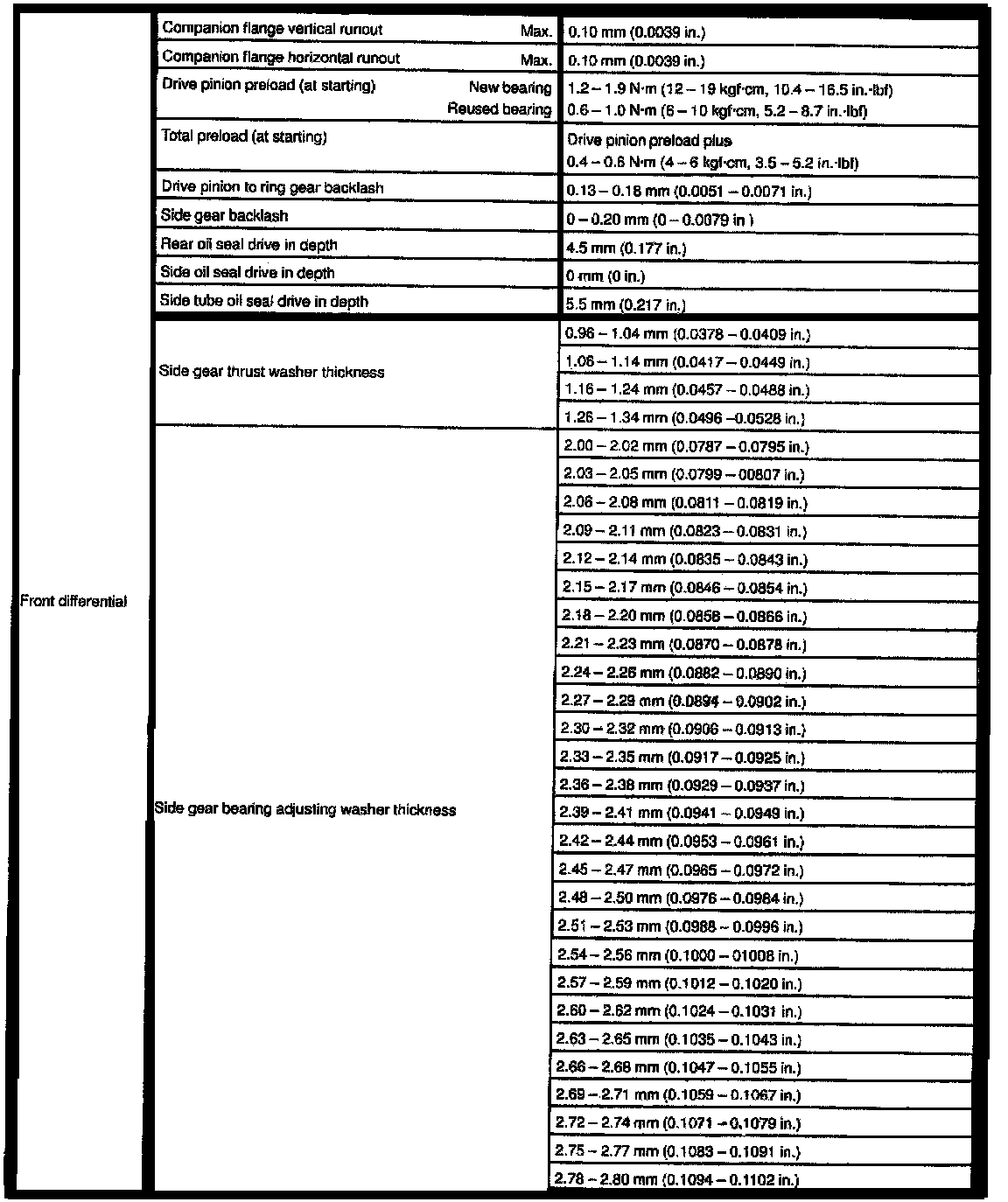

Front Differential, Carrier Clearance/Tolerances:

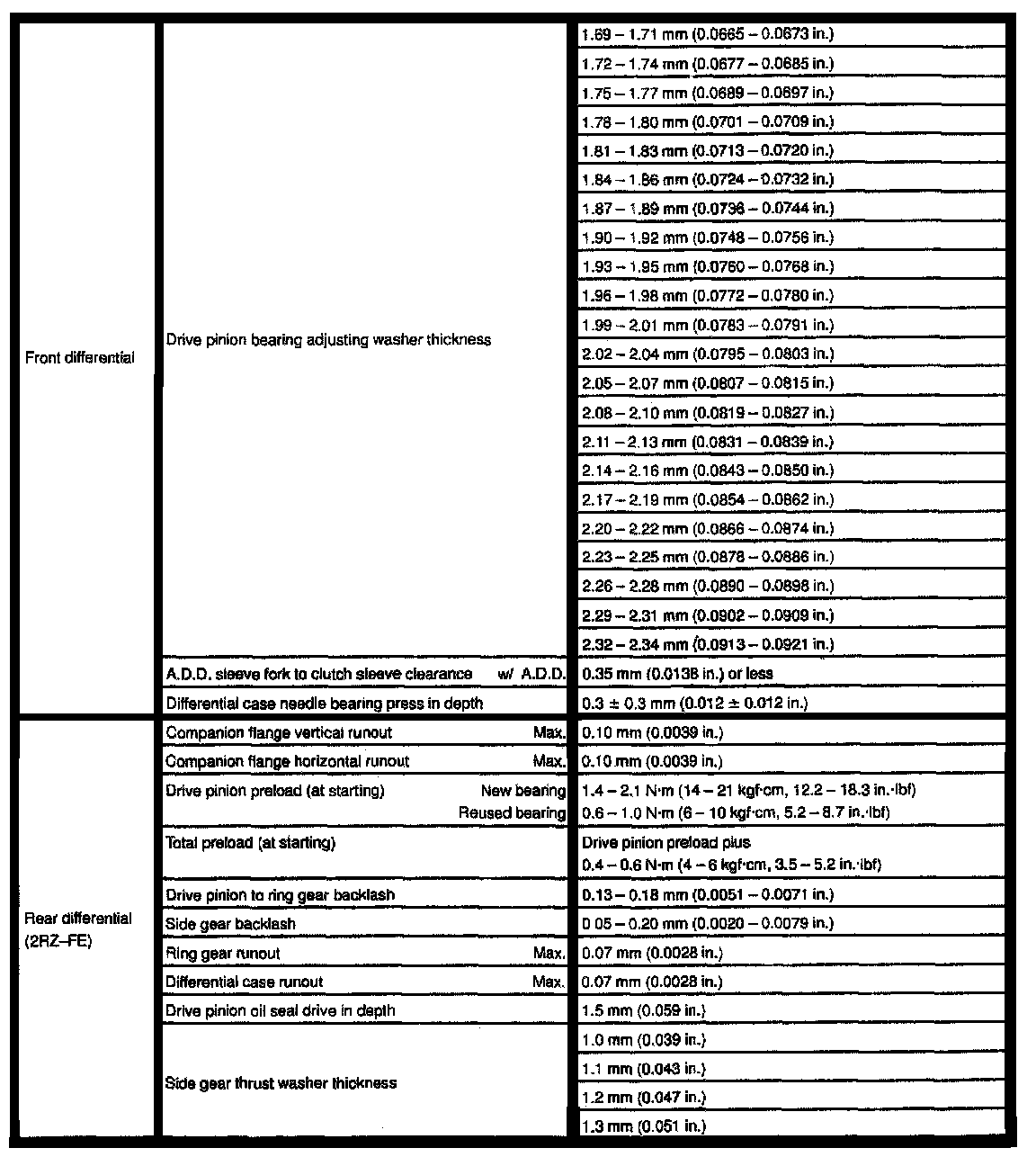

Front Differential/Rear, Pinion Bearing/Carrier Clearance:

Rear Differential/Rear W/o Lock, Bear Thickness/Carrier Clearance:

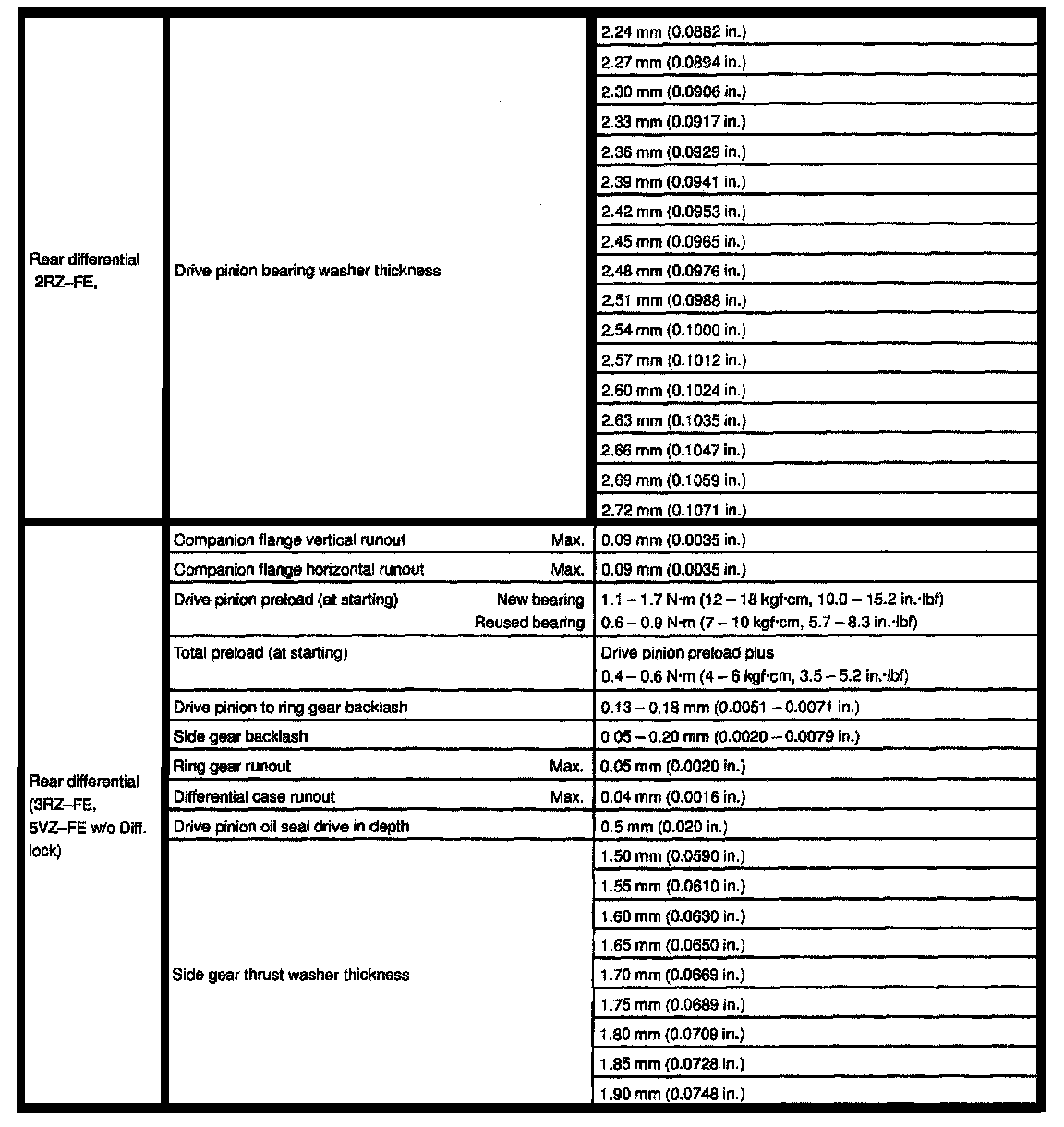

Rear Differential W/o Diff. Lock, Side Bearing Thickness:

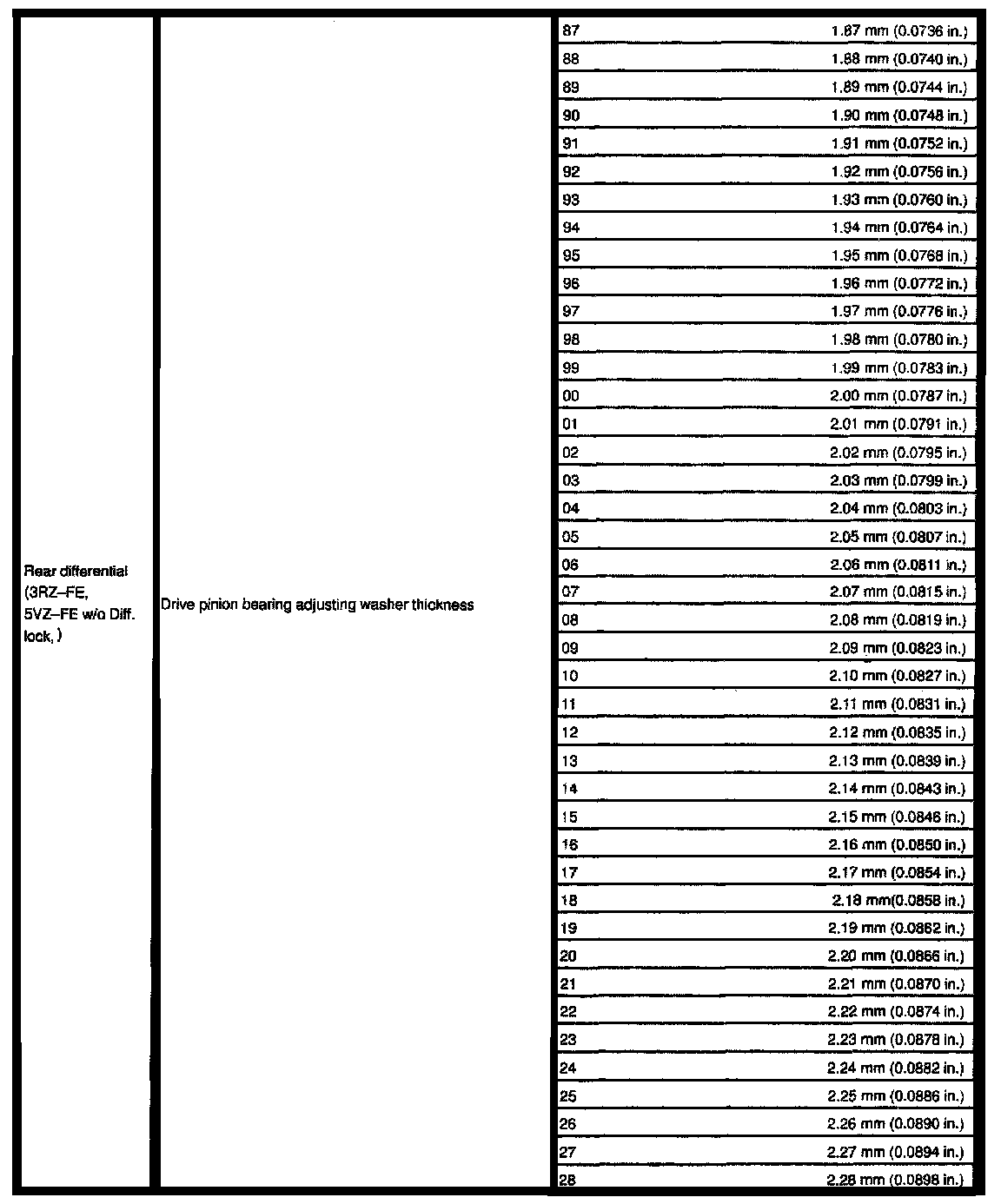

Rear Differential W/o Diff. Lock, Drive Pinion Thickness:

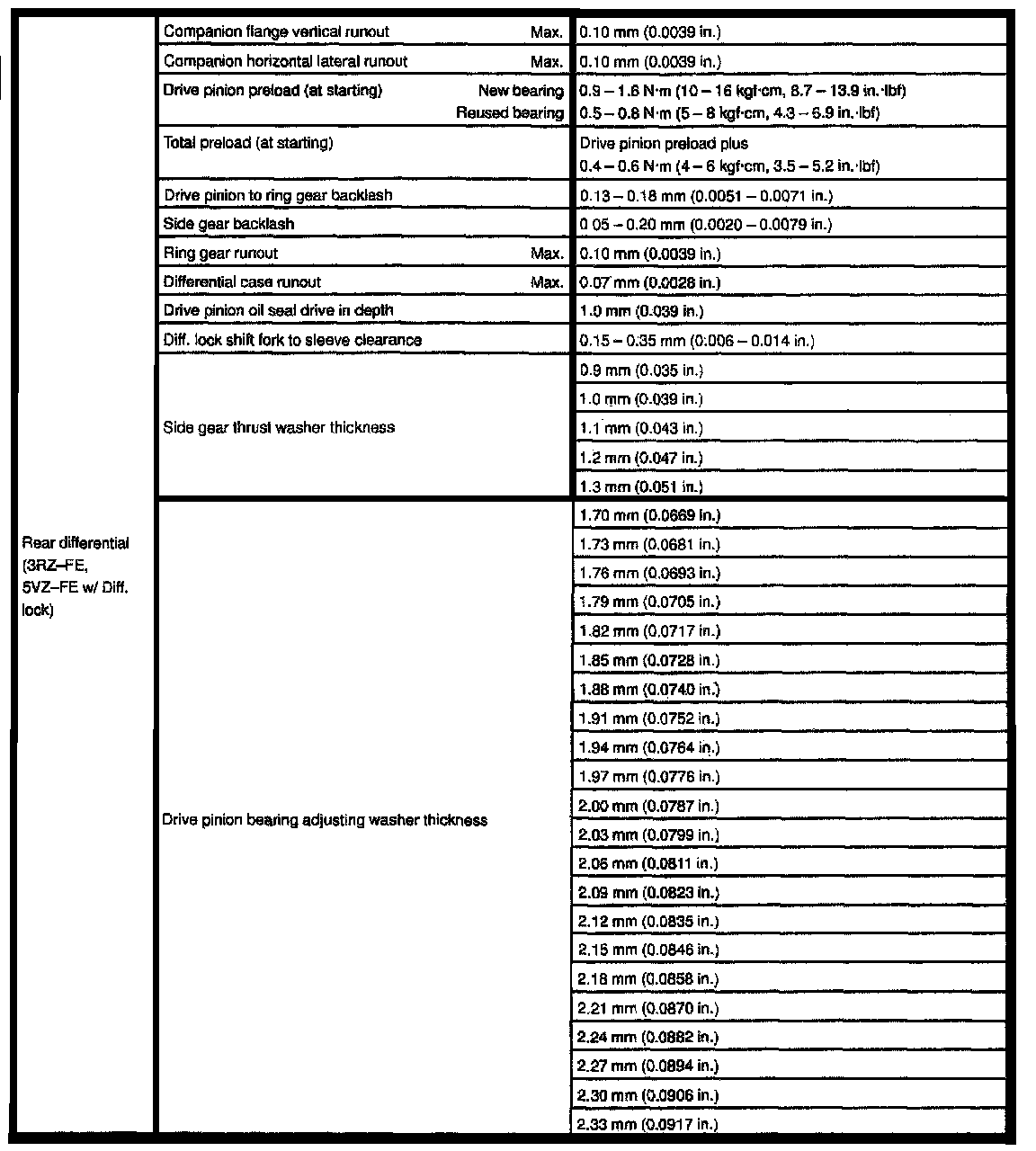

Rear Differential With Diff. Lock, Carrier Clearances:
