Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

IAT SENSOR INSPECTION

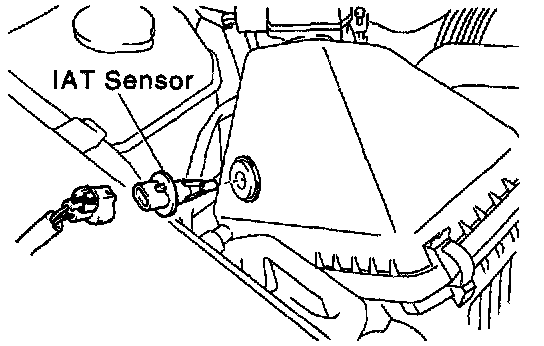

1. REMOVE IAT SENSOR





2. INSPECT IAT SENSOR

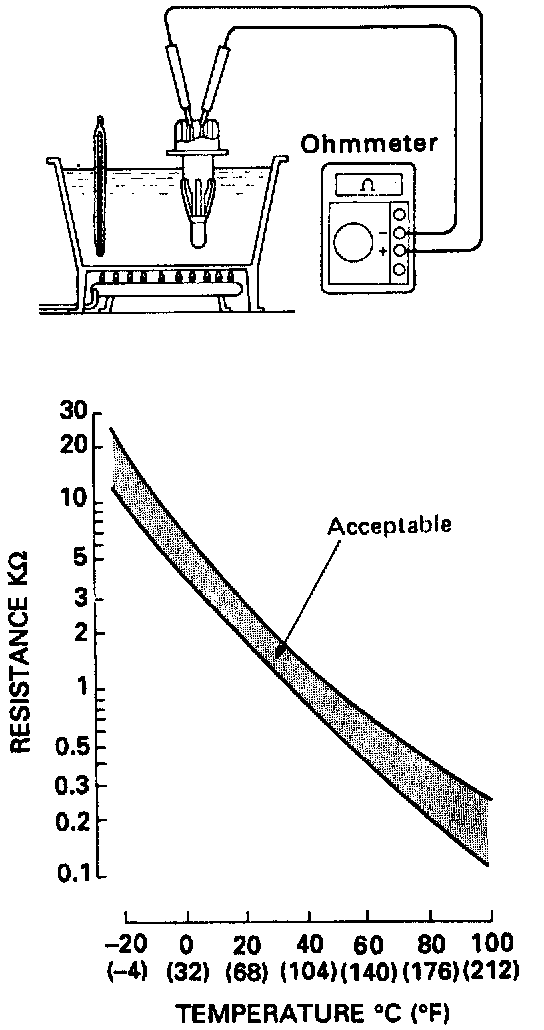

Using an ohmmeter, measure the resistance between the terminals.

Resistance: Refer to the chart graph

If the resistance is not as specified, replace the IAT sensor.
3. REINSTALL IAT SENSOR
