How to Read Adjustment Chart

HOW TO READ ADJUSTMENT CHART
a. Find the wheel alignment standard value applicable for the particular model.
b. Mark the selected standard value on the adjustment chart.

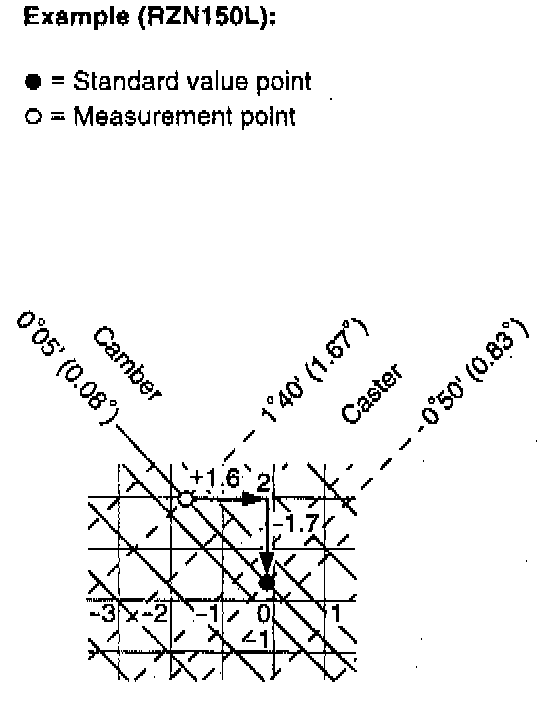

Example (RZN150L):
Camber: 0° 05' (0.08°)
Caster: 1° 50'(0.83°)

c. Mark on the adjustment chart the alignment values measured at the non-loaded vehicle height.

Example:
Camber: 0° 05' (0.08°)
Caster: 1° 40'(1.67°)

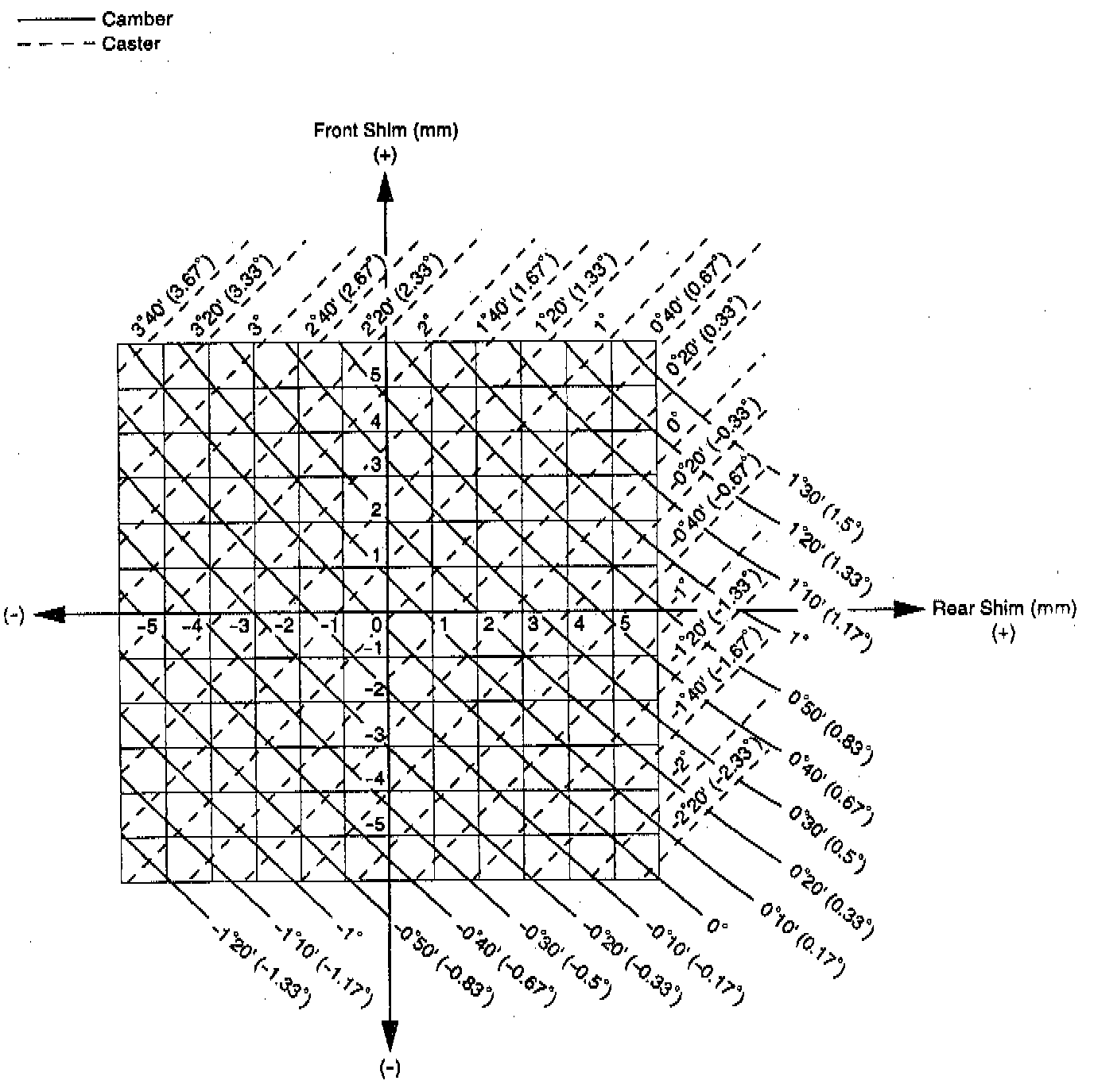

d. As shown in the illustration, read the distance from the standard value to the measured value, and adjust the front and/or rear shims accordingly.
