Heater Control Assembly

HEATER CONTROL ASSEMBLY REMOVAL


1. REMOVE THESE PARTS:
a. Glove compartment parts.
b. Lower finish panel.
c. No.2 heater to register duct.
d. A/C switch
e. Heater control knobs.
f. Healer control panel.
g. Center cluster finish panel.

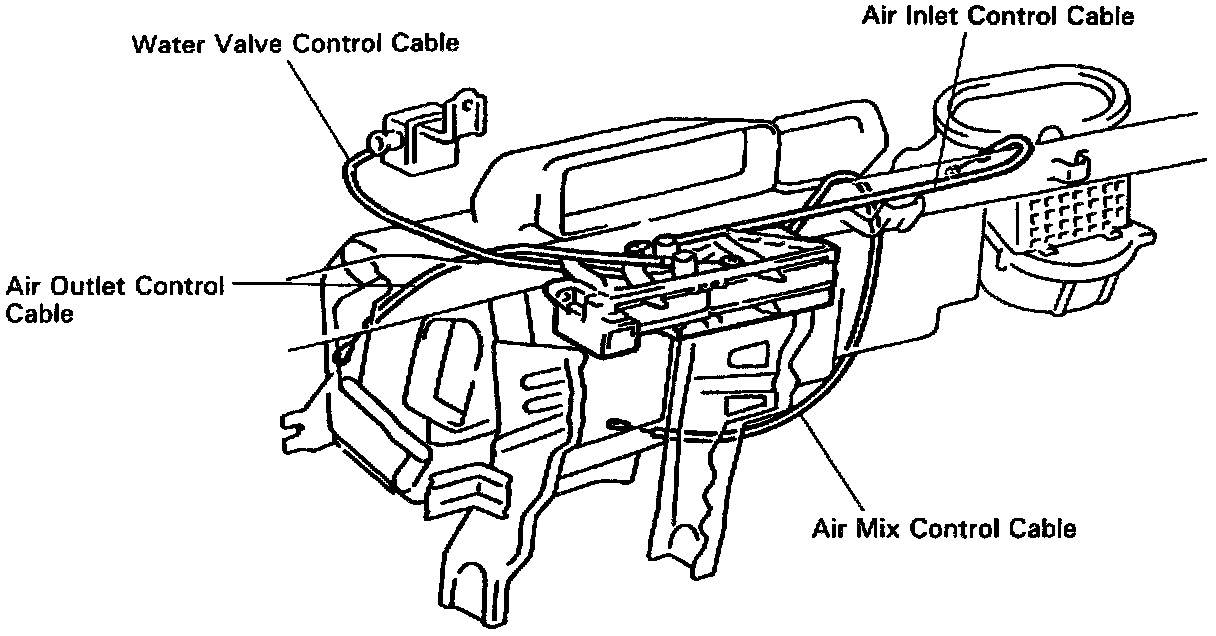

2. DISCONNECT HEATER CONTROL CABLES


3. REMOVE HEATER CONTROL ASSEMBLY
Remove the 3 screws and pull out the heater control assembly, then disconnect the connectors.

HEATER CONTROL ASSEMBLY INSTALLATION
Installation is in the reverse order of removal.

HINT: If cable's adjustment is in need, refer to HEATER CONTROL CABLE ADJUSTMENT. Adjustments
