Air Conditioning Control Assembly

SWITCH REMOVAL







1. REMOVE BLOWER SPEED CONTROL SWITCH
a. Pull out the illumination light from the heater control assembly.

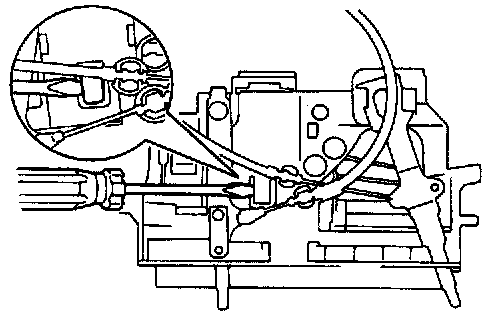

b. Using a screwdriver, pry loose the clip and push out the blower speed control switch to rear of the heater control assembly.

REMOVAL HINT: Tape the screwdriver tip before use.

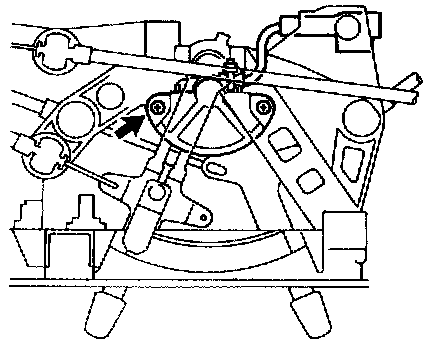

2. REMOVE DEF. MODE SWITCH
a. Disconnect the connector clamp.
b. Remove the screw and switch.

SWITCH INSTALLATION
Installation is in the reverse order of removal.
